An engineering guide evaluating Power over Ethernet evolution, transmission efficiency, and high-wattage edge infrastructure requirements.
Modern industrial field devices—such as pan-tilt-zoom (PTZ) cameras with built-in heaters, Wi-Fi 7 access points, and localized AI computing nodes—have outgrown standard PoE capabilities. While legacy IEEE 802.3af (PoE) and 802.3at (PoE+) cap out at 15.4W and 30W, The IEEE 802.3bt PoE++ standard, implemented through managed industrial PoE++ switches, delivers up to 90W per port. By leveraging all four pairs of copper cabling, 90W PoE++ ensures up to 71.3W of guaranteed power at 100 meters while cutting cable line loss in half.
Power over Ethernet has undergone three major evolutionary steps to keep pace with bandwidth and power demands at the network edge. Understanding these differences is critical when selecting network switches for industrial deployments.
| Specification | PoE (IEEE 802.3af) | PoE+ (IEEE 802.3at) | PoE++ (IEEE 802.3bt) |
|---|---|---|---|
| Standard Year | 2003 | 2009 | 2018 |
| Conductor Utilization | 2 Pairs (4 conductors) | 2 Pairs (4 conductors) | 4 Pairs (8 conductors) |
| Max Output Power at PSE | 15.4W | 30.0W | 60W (Type 3) / 90W (Type 4) |
| Guaranteed Power at PD (100m) | 12.95W | 25.5W | 51.0W (Type 3) / 71.3W (Type 4) |
| Cable Requirement | Cat3 or better | Cat5e or better | Cat6 / Cat6A (Recommended) |
| Primary Target Devices | Basic IP Phones, Static Cameras | Fixed HD Cameras, Basic APs | PTZ Cameras, Edge AI, Wi-Fi 7 |
Why is transmitting power over four pairs better than over two pairs? The key lies in basic electrical physics. When current flows through copper conductors, energy is lost as heat according to Joule's Law (P = I²R).
By distributing electrical current across all 4 twisted pairs (8 conductors) rather than 2 pairs (4 conductors), the current per conductor is halved. Because power dissipation scales quadratically with current, halving the current reduces thermal power loss by up to 50% along the 100-meter cable run.
Upgrading to 90W power delivery is no longer optional for high-load edge deployments. Modern industrial devices require a dedicated high-wattage power budget to run reliably:

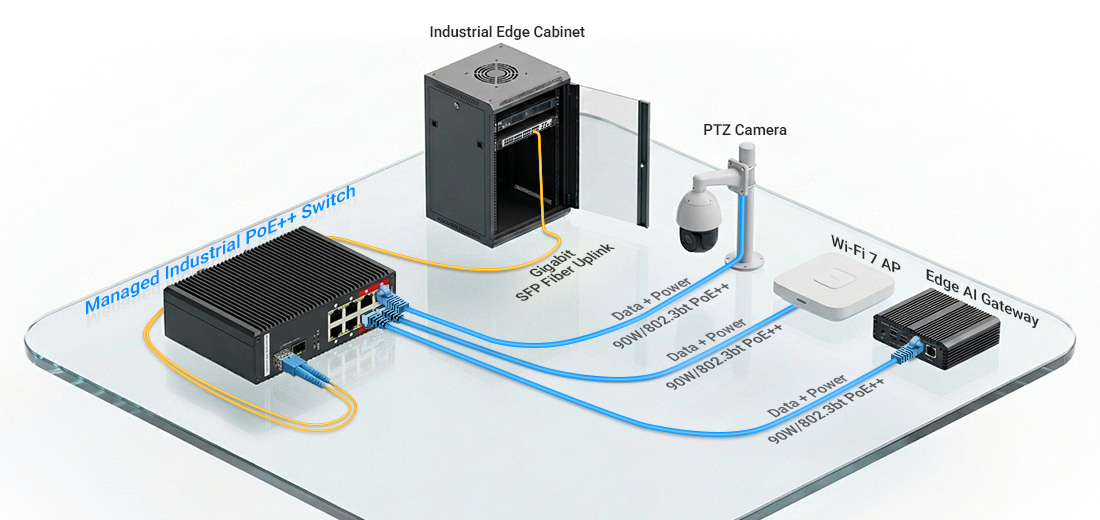

Deploying high-wattage power in harsh factory environments requires more than just raw power. Managed industrial PoE++ switches combine robust physical enclosures with automated management tools like Ping Watchdog to monitor connected endpoints continuously and automatically power-cycle frozen devices.

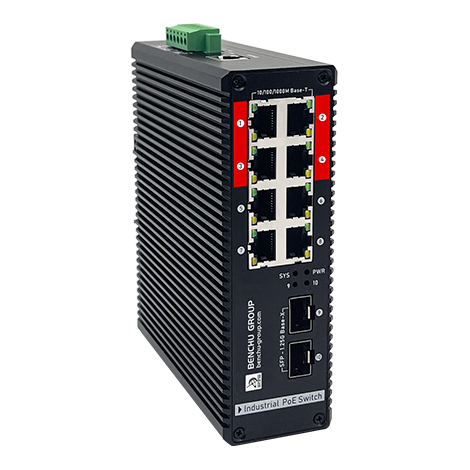

Model: IES7511-8PGE2GF-4BT-DC
Migrating from legacy PoE and PoE+ to IEEE 802.3bt PoE++ infrastructure enables higher-power, more efficient, and more scalable industrial edge deployments through three key advantages:
Q: Is 802.3bt 90W PoE++ backward compatible with older 802.3af and 802.3at PoE devices?
A: Yes. IEEE 802.3bt PoE++ switches are fully backward compatible with IEEE 802.3af and 802.3at powered devices. The switch automatically negotiates required power levels via hardware classification, ensuring legacy endpoints receive exact required power without exceeding design limits.
Q: Do I need specialized Ethernet cabling to run 90W 802.3bt PoE++?
A: Category 6 or Category 6A cabling is strongly recommended for 90W Type 4 PoE++ deployments, although 60W Type 3 can run on Cat5e. Thicker gauge conductors (lower AWG) minimize DC resistance and thermal accumulation in bundled cables, guaranteeing stable power transmission up to 100 meters.
Q: What is the difference between 802.3bt Type 3 and Type 4 PoE++?
A: Type 3 provides up to 60W per port, while Type 4 delivers up to 90W. Both utilize 4-pair 4PPoE technology to balance current across all 8 conductors, significantly reducing line loss and thermal stress compared to legacy 2-pair power delivery.
Q: Why is PoE++ required for PTZ cameras and outdoor Edge AI hardware?
A: Outdoor PTZ cameras and Edge AI nodes demand 50W to 90W peak power during cold-start heater activation, IR illumination, or high GPU workloads. Legacy 30W PoE+ switches cannot support these power surges, resulting in continuous reboot loops or device brownouts.
