Eliminating Remote AC Wiring: How 500W Power over Fiber Switches Enable 500m Optical Edge Deployments
A Power over Fiber (PoF) Switch eliminates the need for remote AC wiring by delivering centralized 500W power and Gigabit network connectivity over hybrid optical-electrical cables across distances up to 500 meters. Unlike traditional Ethernet deployments that require local power sources at remote edge locations, PoF transfers optical power and data through a single non-conductive cable infrastructure, reducing installation complexity while providing galvanically isolated network connections. The system supports up to 30W power delivery per remote port through optoelectronic conversion, enabling reliable deployment of edge devices such as IP cameras, wireless access points, and AI computing gateways without dedicated AC power infrastructure.
1. Physical Bottlenecks of 500m Copper PoE and Remote AC Power Deployments
Extending Gigabit connectivity and power delivery to remote edge devices beyond the standard 100-meter Ethernet limit creates significant electrical, reliability, and installation challenges:
|
Metallic conductors experience increasing DC resistance over extended cable distances, causing severe voltage drop and power loss that prevent conventional PoE/PoE+ systems from maintaining rated power delivery beyond 100 meters. |
Conductive copper cables installed across large outdoor areas can introduce ground potential differences between equipment locations, creating ground loops, electrical noise, and increased susceptibility to EMI. |
|
Copper-based physical layers provide a conductive path for transient surge currents, increasing the risk of permanent damage to connected network equipment during lightning events or electrical disturbances. |
Deploying dedicated AC power drops to remote edge locations requires additional trenching, conduit installation, electrical permitting, and maintenance resources, significantly increasing project complexity and lifecycle costs. |
2. System Architecture: Centralized Optical Power and Data Delivery

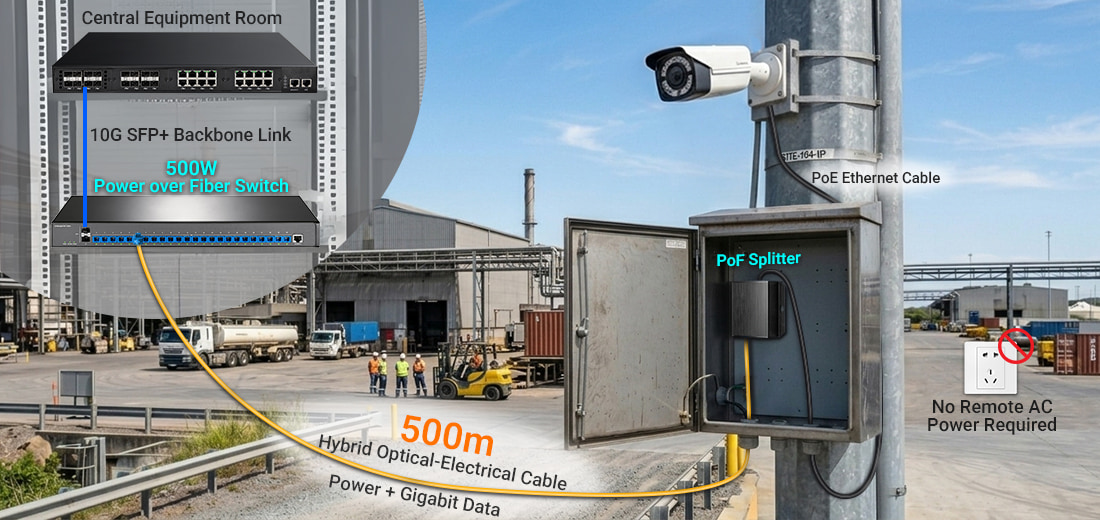

PoF combines centralized power delivery and Gigabit data transmission over a hybrid optical-electrical cable, extending isolated edge connectivity up to 500 meters without remote AC wiring.
3. Key Technical Specifications of 500W PoF Switches
|
HIGH POWER BUDGET
500W Centralized Power Budget Features a 500W centralized power budget capable of supplying power to up to 24 remote edge receivers simultaneously. Dynamic firmware management enables active load monitoring, intelligent power allocation up to 30W per port, and hardware-based overcurrent protection. |
ZERO INTERFERENCE
Total Galvanic Isolation Non-conductive optical fibers eliminate conductive electrical paths between the central PoF switch and remote endpoints. This architecture provides total galvanic isolation for the data channel, reducing risks from ground loops, lightning surges, ESD events, and industrial EMI interference. |
HIGH-SPEED AGGREGATION
Wire-Speed L3 Routing & 10G Uplink Integrates hardware-based Layer 3 networking features including OSPF, static routing, and VLAN segmentation, combined with dual 10G SFP+ uplinks to deliver non-blocking aggregation for high-density edge video, IoT, and enterprise applications. |
4. Technical Comparison: Remote AC Wiring vs. Power over Fiber (PoF)
| Parameter | Traditional Remote AC Infrastructure | 500W Power over Fiber (PoF) |
|---|---|---|
| Power Architecture | Local AC mains connection with localized transformers | Centralized DC-to-Optical energy conversion |
| Max Deployment Range | Limited to 100m for PoE; expensive AC drops beyond | Up to 500 meters continuous reach |
| Electrical Isolation | Low (susceptible to ground loops & voltage spikes) | 100% Galvanic Isolation (Non-metallic path) |
| Deployment Complexity | High (trenching, high-voltage conduit, licensing) | Low (Single hybrid optical fiber run) |
| Power Resilience | Requires distributed, high-maintenance remote UPS units | Single central office UPS protects all 24 nodes |
5. Target Application Scenarios
|
1. CAMPUS SECURITY
Perimeter Campus Security Grids Enables long-distance deployment of high-power IP PTZ cameras and emergency communication terminals while reducing the need for additional AC trenching and remote power infrastructure. |
2. INDUSTRIAL AUTOMATION
High-EMI Automated Facilities Provides EMI-resistant data transmission and isolated power delivery for controllers deployed near welding equipment, transformers, and high-voltage machinery. |
3. TRANSPORTATION & RAIL
Transportation Corridors & Rail Maintains reliable power and communication links for trackside enclosures exposed to lightning events, electrical transients, and harsh outdoor environments. |
By combining centralized optical power delivery with enterprise-grade Layer 3 networking, 500W Power over Fiber Switches eliminate the need for remote AC infrastructure while providing a reliable and isolated foundation for 500-meter edge deployments.
6. Frequently Asked Questions (FAQ)
How does Power over Fiber (PoF) deliver power without traditional copper power wiring?
PoF converts centralized electrical power into optical energy at the central switch and transmits it through non-conductive optical fibers within a hybrid cable. At the remote edge location, optoelectronic converters convert the optical energy back into DC power while maintaining electrical isolation across the transmission path.
Can a 500W PoF Switch power standard PoE/PoE+ edge devices?
Yes. A remote PoF receiver or splitter converts transmitted power and optical data into Ethernet connectivity and regulated DC output. This enables standard edge devices such as IP cameras, wireless access points, and VoIP phones to operate without local AC power infrastructure.
What are the main cost advantages of replacing remote AC infrastructure with PoF?
PoF reduces the need for remote AC power installations, including trenching, conduit systems, local transformers, and additional maintenance points. By centralizing power management at the network location, organizations can simplify long-distance edge deployments and reduce overall infrastructure complexity.
Ready to Deploy a 500m Power over Fiber Solution?
Eliminate complex remote AC wiring, simplify long-distance edge deployments, and achieve reliable galvanically isolated power and data transmission with a 500W Power over Fiber Switch solution. Contact our PoF engineering team for technical consultation, evaluation units, and customized OEM/ODM solutions.
