Bypassing the 100m Ethernet Limit: How Industrial 90W PoE Extenders Enable Longspan Outdoor Deployments
A 90W Industrial PoE Extender overcomes the standard 100-meter Ethernet distance limitation by regenerating Gigabit Ethernet signals and maintaining high-power PoE delivery across extended copper links. Powered by an IEEE 802.3bt Type 4 (90W) PSE source, this industrial PoE repeater delivers up to 72W guaranteed load power at 200 meters, enabling remote PTZ cameras, Wi-Fi 7 access points, and industrial edge devices without additional AC power infrastructure.
Key Deployment Benefits:
- Extended Distance Capability: Cascading up to three PoE extenders can extend Gigabit Ethernet deployments up to 400 meters while maintaining approximately 45W available endpoint power.
- Reduced Installation Complexity: Eliminates the need for additional AC power drops, local electrical work, and intermediate power equipment in remote outdoor locations.
- Industrial Reliability: Designed with an IP40 metal chassis, optional IP67 enclosure integration, wide-temperature operation (-40°C to +75°C), and 6kV surge protection for harsh environments.

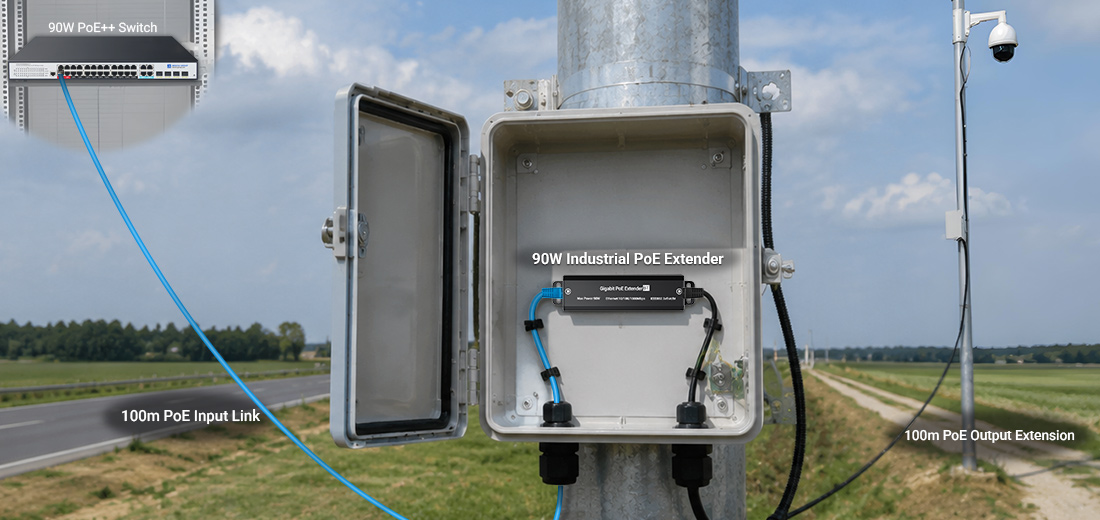

Figure 1: Field deployment architecture using a Gigabit IEEE 802.3bt extender to bypass trenching limits in outdoor environments.
1. Outdoor Field Architecture: PoE Extension vs. Fiber Optic vs. Local AC Power
Network architects designing perimeter security, intelligent transportation systems (ITS), or industrial yards face three distinct long-range connectivity options. Understanding these trade-offs is essential for accurate site budgeting:
DISTANCE: UP TO 200 METERS
Single-Unit Topology (Up to 200 Meters)
Install one PoE extender near the 100m point to regenerate Gigabit Ethernet signals and deliver 72W guaranteed load power at the 200m endpoint—ideal for high-power PTZ cameras with heaters and outdoor Wi-Fi 6/7 access points.
DISTANCE: UP TO 300 METERS
Dual-Unit Cascaded Topology (Up to 300 Meters)
Installing two inline PoE extenders at approximately 100m intervals enables 300m Gigabit Ethernet extension while maintaining approximately 50W–55W available power for medium-power edge devices.
DISTANCE: UP TO 400 METERS
Triple-Unit Cascaded Topology (Up to 400 Meters)
The maximum recommended cascade configuration extends Ethernet connectivity up to 400 meters. Depending on cable quality and installation conditions, it can provide approximately 40W–45W endpoint power for fixed IP cameras, outdoor intercom systems, and IoT devices.
2. PoE Extender Cascading Guidelines: Scaling Longspan Deployments from 200m to 400m
When designing long-distance PoE deployments, engineers must calculate power budget degradation caused by cumulative conductor resistance across multiple extension stages.
| Deployment Approach |
Infrastructure Requirements |
Deployment Complexity |
CAPEX & OPEX Impact |
| Local AC Power Drop + Media Converter |
AC grid connection, transformer, fiber equipment, electrical installation |
High (Permits and electrical labor required) |
Very High |
| Hybrid Powered Fiber Cable |
Composite fiber/copper cable and specialized termination equipment |
Moderate |
Moderate-High |
| 90W Industrial PoE Extender |
Existing 23AWG Cat6 cabling + inline PoE-powered extender |
Low (Plug-and-play Ethernet deployment) |
Lowest (No dedicated AC infrastructure required) |

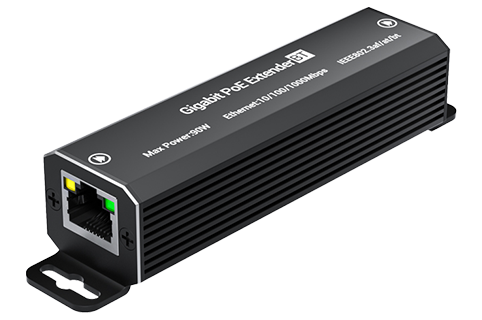

Field Deployment Hardware: Industrial Longspan PoE Extender
FIELD-READY SPECIFICATION
POE-IEX01G-BT90
90W Industrial PoE Extender & Outdoor Repeater | OEM / ODM
- • IEEE 802.3bt Type 4 Compatibility: Supports 90W ultra-high power negotiation across all 4 copper pairs.
- • Industrial Hardening: IP40 corrosion-resistant aluminum housing with fanless passive heat dissipation.
- • Electrical Transient Immunity: Integrated 6kV surge suppression and ±15kV air ESD protection for outdoor pole mounting.
- • Wide Thermal Range: Reliable operation in extreme field conditions from -40°C up to +75°C.
📁 Outdoor Applications: Perimeter Thermal PTZ, Highway ITS Traffic Nodes, & Remote Wi-Fi 7 Radios.
3. Outdoor Installation Best Practices & Failure Avoidance
Ensuring reliable 24/7 operation in longspan outdoor PoE deployments requires careful site engineering practices:
STEP 01 • CABLING
Pure Copper Cabling (Strictly No CCA)
Use solid 23AWG pure copper Cat6/Cat6A cabling for long-distance PoE transmission. Copper-Clad Aluminum (CCA) cables introduce significantly higher resistance, resulting in increased voltage drop, reduced power delivery, and additional heat generation.
STEP 02 • PROTECTION
Weatherproof NEMA/IP67 Enclosure Integration
For exposed outdoor installations, mount the IP40-rated PoE extender inside a NEMA 4X or IP67-rated enclosure with liquid-tight cable glands to protect against moisture, dust, and environmental exposure.
STEP 03 • IMMUNITY
System Grounding & Shielded Connections
Use shielded twisted-pair (STP) cabling and properly grounded RJ45 connectors to reduce EMI interference and maintain a controlled grounding path. Proper surge protection and grounding practices are essential for outdoor reliability.
Summary & B2B OEM / ODM White-Label Manufacturing
Deploying a 90W industrial PoE extender helps overcome standard copper Ethernet distance limitations while maintaining high-power connectivity for remote edge devices. By extending Gigabit PoE beyond the standard 100m boundary, it reduces the cost and complexity associated with dedicated outdoor AC power infrastructure while delivering reliable power over long-distance copper links.
For Global Brand Partners & Distributors: BENCHU provides full-service OEM/ODM and white-label manufacturing solutions, including custom housing design, tailored surge protection requirements, firmware customization, and private-label packaging for industrial networking products.
Need Technical Datasheets or Custom ODM Pricing?
Contact our engineering team to access validation test reports, request evaluation samples, or discuss customized OEM/ODM manufacturing solutions for industrial PoE networking projects.
