Hardware Deep-Dive: Why Benchu Group’s 90W Industrial PoE++ Injector is Built for Mission-Critical Networking

⚡ Technical Breakdown: IES7211-102G-BT90-IPS at a Glance

• • Standard Compliance: Full IEEE 802.3af/at/bt backward and forward compatibility (Type 4, Class 8 output up to 90W).
• • Thermal Management: Fanless, IP40-rated heavy-duty aluminum alloy enclosure optimized for passive convection cooling.
• • Operating Envelope: -40°C to +75°C tested operational range with zero thermal power derating.
• • Power Flexibility: Integrated wide-range voltage booster supporting redundant dual DC inputs (12V-54V).
• • Surge Immunity: Industrial-grade 6KV differential and common-mode lightning protection.

1. Advanced Thermal Engineering & Rugged IP40 Enclosure

Mechanical fans are the number one point of failure in industrial network deployments due to dust accumulation and mechanical wear. Benchu Group’s engineering team completely eliminated this vulnerability by designing a high-thermal-conductivity IP40-rated extruded aluminum enclosure.

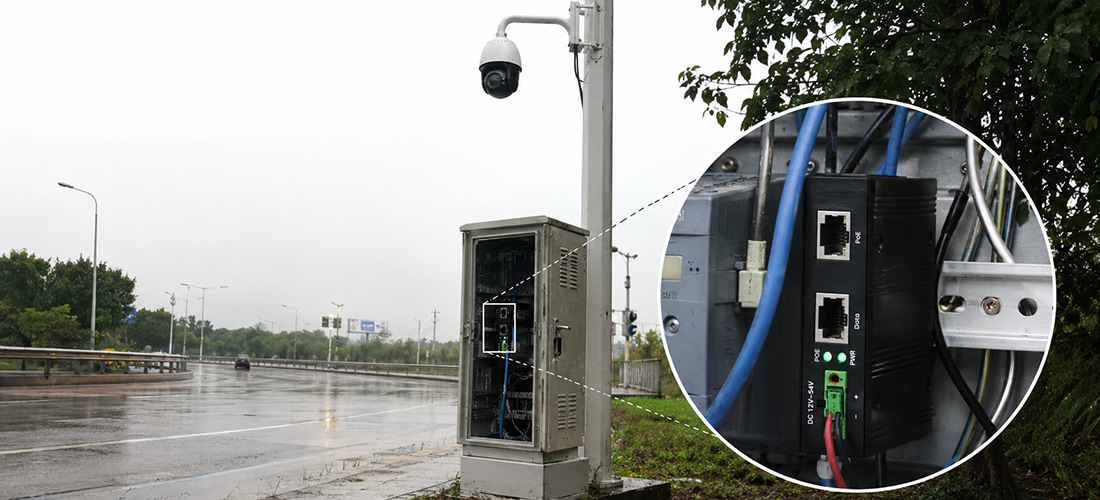

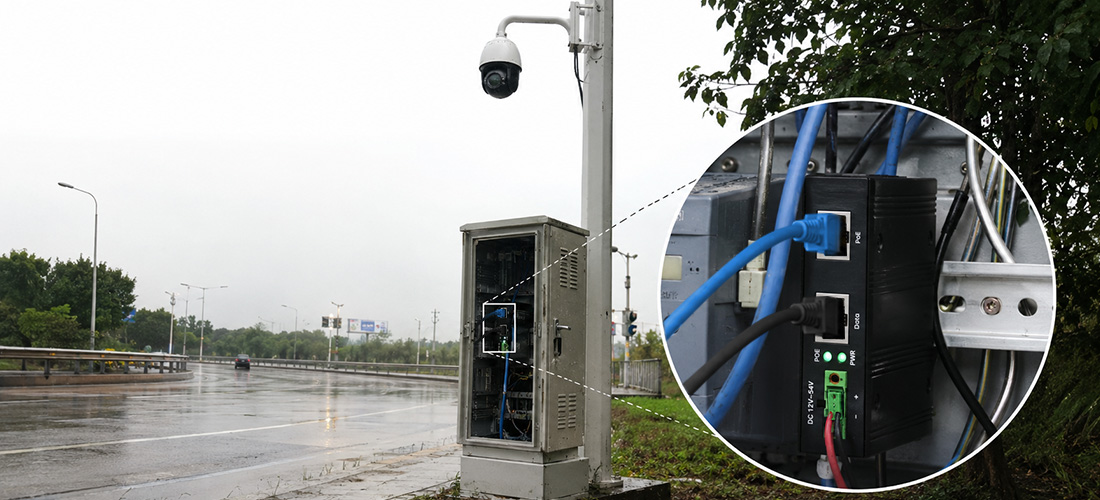

By utilizing high-grade silicon thermal pads to bridge internal power transformers and MOSFETs directly to the deep-ribbed metallic chassis, the injector maximizes passive heat dissipation. This architectural choice ensures the unit maintains a stable 90W continuous power budget even at +75°C ambient temperatures without suffering from thermal throttling or component degradation—an absolute necessity for outdoor roadside cabinets and desert-based solar stations.

2. Intelligent Power Management & Low-Voltage Boosting (12V-54V)

One of the greatest challenges for system integrators in solar surveillance or industrial automation is irregular input voltage. Most off-the-shelf 90W PoE Injector mandate a strict 48V-56V DC input, requiring extra voltage regulators. Benchu Group solves this natively with an integrated step-up voltage booster circuit. Our proprietary hardware architecture accepts a highly flexible input range from 12V to 54V DC.

• Solar & Battery Applications: The injector can seamlessly intake standard 12V or 24V DC directly from solar battery banks or vehicle power systems and efficiently boost it to the stable 48V-56V required by strict IEEE 802.3bt Type 4 compliance.
• Redundant Dual DC Inputs: The PCB features a dual-channel terminal block configuration. In the event of a primary power supply failure, the hardware executes a zero-millisecond hardware-level failover to the backup DC source, guaranteeing 100% uptime for high-draw PTZ cameras or critical wireless backhauls.

3. Carrier-Grade Electrical Protection: 6KV Surge & ESD Safeguarding

Outdoor network lines are highly susceptible to electromagnetic interference (EMI), lightning strikes, and static discharge. To shield both the injector itself and your expensive downstream Powered Devices (PDs)—such as 4K thermal cameras or Wi-Fi 7 Access Points—the IES7211-102G-BT90-IPS is armed with multi-layered electrical armor:

• 6KV Surge Protection: Built-in Heavy-Duty Gas Discharge Tubes (GDT) and Transient Voltage Suppressors (TVS) fully pass rigorous IEC 61000-4-5 standards, absorbing high-energy voltage spikes up to 6KV on both differential and common modes.
• Industrial ESD Protection: Supports contact discharge of ±6KV and air discharge of ±8KV meeting IEC 61000-4-2 criteria, effectively eliminating the risk of electrostatic damage during field installation or within high-static manufacturing plants.

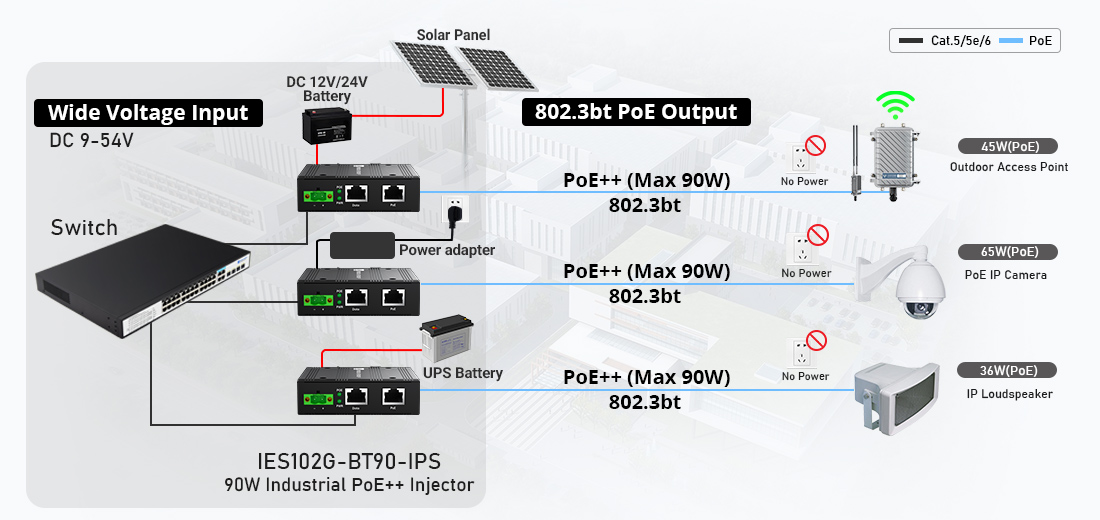

🌐 System Connection Topology Diagram

Recommended 90W Industrial PoE++ Injector

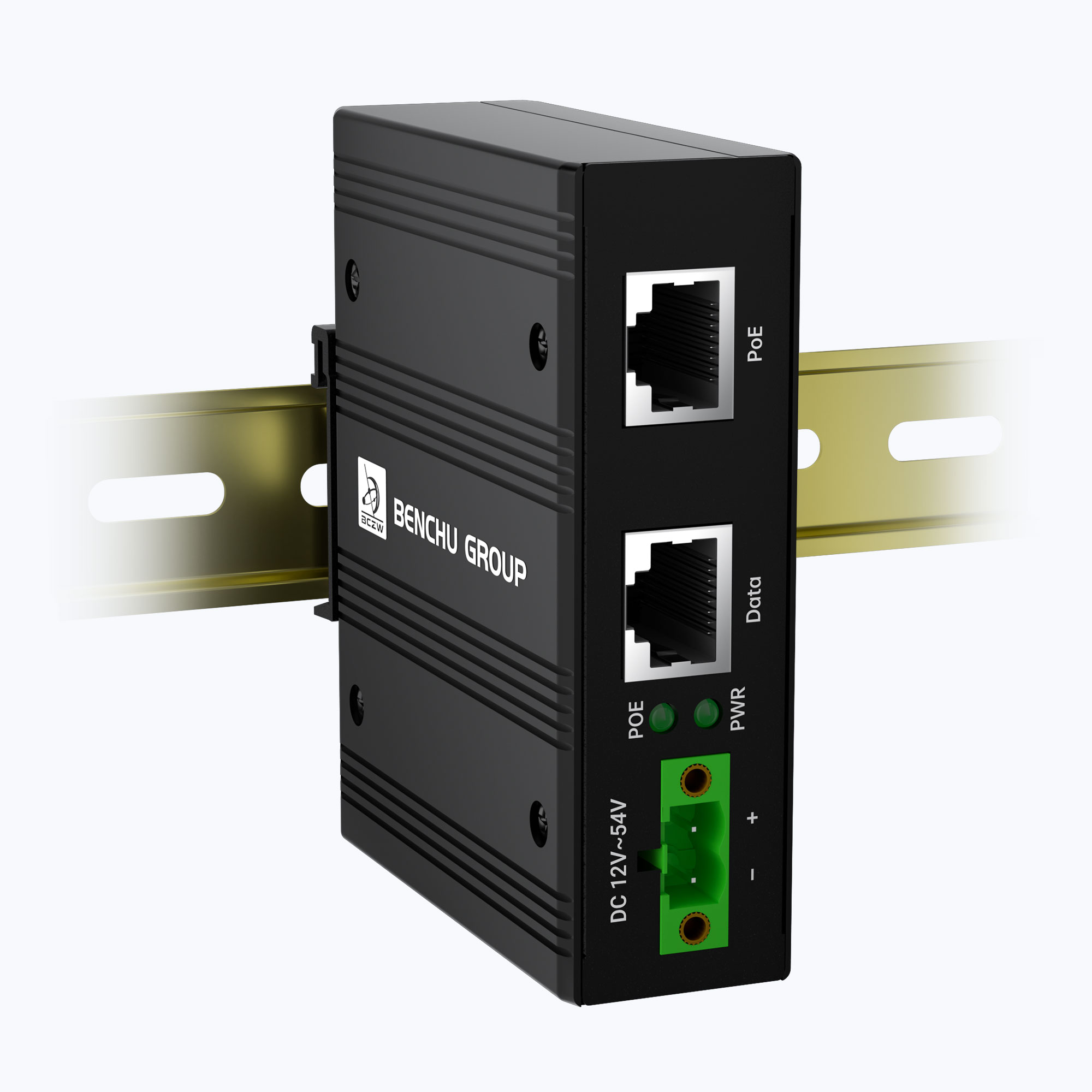

HARDWARE SPOTLIGHT 90W Industrial PoE++ Injector Model: IES7211-102G-BT90-IPS • Future-Proof Power Delivery: 90W Type 4 budget ensuring raw compatibility with next-gen high-load PD investments. • Simplified Infrastructure: Eliminates local AC grid dependency, highly reducing installation labor and hazards. • Extreme Thermal Tolerance: Fanless architecture engineered precisely to handle high-ambient industrial settings. • Flexible DIN-Rail Chassis: Ultra-compact form factor for quick, space-saving control cabinet deployments. Access Specifications & Data Sheet  →

💡 B2B Engineering Note for OEM/ODM Partners

Because Benchu Group owns 100% of the hardware schematic and PCB layout design for the IES7211 series, we offer global brands flexible hardware customization. Whether your project requires specialized terminal block alignments, localized compliance markings, or modified power distribution firmware to accommodate proprietary non-standard PD devices, our Shenzhen-based R&D team can deliver working prototypes within accelerated OEM timelines with flexible MOQ options.
