Overview
IES7221-16PGE4GC-4BT-AC, 16 Ports Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink,4 PoE++(90W) and 12 PoE+(30W) Ports, 500W Power budget
|
Physical Port
Power over Ethernet
|
Switching
Hardware
|
Features
Gigabit Ethernet Port and Gigabit Fiber Port Configuration
Bench group's IES7211-8PGE2GF-4BT-DC Gigabit Industrial UPoE+ Switch provide 4 PoE++ 10/100/1000Mbps RJ45 ports, 4 PoE+ 10/100/1000Mbps RJ45 ports, and 2-1.25G SFP uplink, support IEEE820.3af/at/bt provide up to 90W for port 1 to 4, support IEEE820.3af/at provide up to 30W for port 5 to 8, support redundant power .

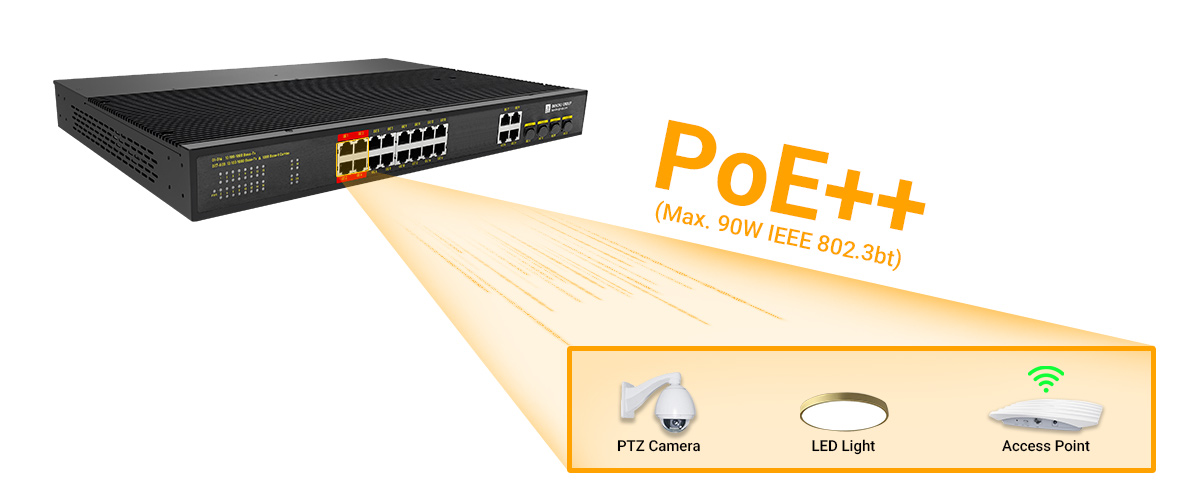

802.3bt PoE++ up to 90W (Type 4) per port
Benchu group's gigabit UPoE+ Switch SP5210-8PGE2G1GF-4BT Support PoE++ protocol, defined by the IEEE 802.3bt standard, significantly enhances Power over Ethernet capabilities, delivering up to 90W (Type 4) per port. This high power output supports advanced devices such as high-definition PTZ cameras, LED lighting, and digital signage. PoE++ ensures efficient power distribution and data connectivity through a single Ethernet cable, simplifying installation and reducing infrastructure costs. It maintains backward compatibility with previous PoE standards (IEEE 802.3af/at), allowing seamless integration with existing network devices while enabling the deployment of newer, power-intensive applications.

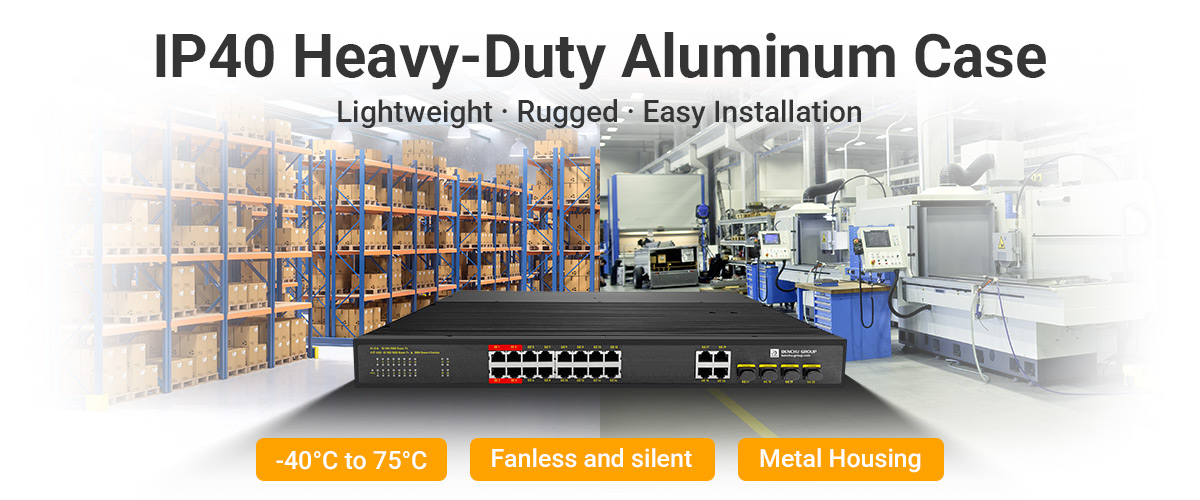

IP40 High-strength Aluminum Case Gives to Lightweight and Easy Installation
The IP40 robust aluminum construction guards against impacts, dust, and other contaminants, ensuring the switch’s internal components remain safe and functional in demanding industrial environments.Despite its strength, the aluminum case is lightweight, making the industrial PoE switch easier to handle and install. The reduced weight simplifies mounting and positioning, particularly in complex industrial setups or confined spaces. This ease of installation saves time and effort for technicians and supports quicker deployment of network infrastructure.
Redundant power gives to Operational Safety
Benchu group's IES7211-8PGE2GF-4BT-DC gigabit Industrial UPoE+ Switch with redundant power, Redundant power systems in industrial UPoE+ switches contribute to operational safety by ensuring that network devices continue to receive power even during power supply issues. This continuous power delivery prevents sudden shutdowns, protecting sensitive equipment from damage and maintaining the integrity of ongoing processes. Operational safety is vital in industries such as manufacturing, healthcare, and utilities.
Wide Operating Temperature Design gives to Enhanced Equipment Protection
Benchu group's IES7211-8PGE2GF-4BT-DC gigabit Industrial UPoE+ Switch designed for wide temperature ranges often come with additional rugged features, such as enhanced surge protection and robust housings. These features protect the switch and connected devices from electrical surges, moisture, dust, and physical impact. This added protection extends the lifespan of the equipment, reducing the frequency of maintenance and replacements. By safeguarding against environmental hazards, these switches ensure that critical network infrastructure remains secure and operational, even in the most demanding conditions, ultimately providing greater reliability and lower total cost of ownership.

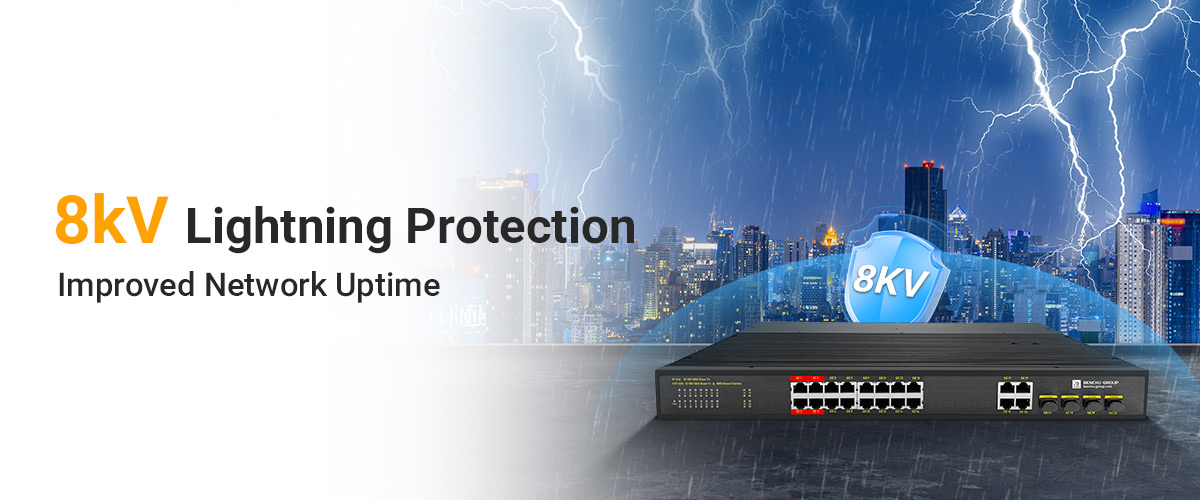

8kV Lightning Protection Gives to Improved Network Uptime
Benchu group’s 8 Ports Gigabit Industrial UPoE+ Switch SP7211-8PGE2GF-4BT-DC with 8kV lightning protection ensures the industrial UPoE+ switches meets stringent safety and industry standards. Compliance with these standards guarantees the switch’s suitability for deployment in hazardous or high-risk environments, providing peace of mind to operators. Adhering to safety regulations is crucial for industries such as manufacturing, energy, and transportation, where electrical safety is paramount.
Connectivity Solutions
16 Port Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Uplink Connectivity Solution
Specification
Технические характеристики :
IES7221-16PGE4GC-4BT-ACМедные порты 10M/100M/1G RJ45 :
16Комбинированный гигабитный R4J5 и SFP :
4Порты PoE/PoE+ :
12 (up to 30W per port)Порты PoE/PoE+/PoE++/UPoE+ :
4 (up to 90W per port)Питание через Ethernet :
*Стандарт PoE :
IEEE 802.3bt Power over Ethernet Plus Plus / PoE++； Backward compatible with IEEE 802.3af/at Power over EthernetТип источника питания PoE :
End-span: 1/2/4/5 (+), 3/6/78 (-)Выходная мощность PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) ； Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)Технические характеристики производительности :
*Буферная память пакетов :
8.2 MbРежимы переадресации :
Store-and-forwardПропускная способность :
128 GbpsСкорость пересылки пакетов :
35.72Mpps (64 byte packet size)Размер базы данных MAC-адресов :
8K (48-bit MAC ad-dresses)Поддержка больших кадров :
9KСетевые протоколы IEEE :
*Протоколы :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex FlowМониторинг :
*светодиоды :
YesНа порт :
Speed, Link, Activity; PoE in different modeЗа устройство :
PowerФизические характеристики :
*Размеры (ширина * глубина * высота) :
440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)Масса :
<6.6 kg (11.55 lb)Потребляемая мощность :
500W (when all ports used, line-rate traffic and max PoE)максимальная мощность :
16W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Энергопотребление в режиме ожидания :
10W (all ports link-down standby) (Watts)Энергоэффективный Ethernet (EEE) :
Yes (deactivated by default)Вентилятор :
FanlessЭкологические характеристики :
*Рабочая Температура :
-30° to 75°C (-22° to 167°F)Рабочая влажность :
95% maximum relative humidity (RH), non-condensingРабочая высота :
10,000 ft (3,000 m) maximumТемпература хранения :
-40° to 85°C (-40° to 185°F)Влажность при хранении (относительная) :
95% maximum relative humidity, non-condensingВысота хранения :
10,000 ft (3,000 m) maximumИсполнительный стандарт и защита :
*Молниезащита :
*МЭК61000-4-3 (РС) :
10V/m (80~1000MHz)FCC, часть 15/CISPR22 (EN55022) :
Class BМЭК 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (импульсное магнитное поле) :
1000A/mIEC61000-4-10 (затухающие колебания) :
30A/m, 1MHzIEC61000-4-12/18 (ударная волна) :
CM 2.5kV, DM 1kVМЭК61000-4-4(ЭФТ) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (синфазная передача) :
30V, 300V, 1sМЭК61000-4-2 (ЭСР) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Радиочастотная передача) :
10V(150kHz~80MHz)МЭК61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (перенапряжение): силовой кабель :
CM±4kV/ DM±2kV, Data cable: ±4kVМеханические свойства :
*МЭК60068-2-6 :
Anti VibrationМЭК60068-2-32 :
Free FallМЭК60068-2-27 :
Anti ShockЭлектромагнитное излучение и иммунитет :
*Сертификаты :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Безопасность :
*Сертификаты безопасности :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Гарантия и поддержка :
*Ограниченная гарантия на оборудование :
Limited Lifetime*Техническая поддержка по телефону и электронной почте* :
Limited Lifetime*Круглосуточная онлайн-чат технической поддержки :
Limited Lifetime*содержимое пакета :
*Все модели :
Smart Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideВид бизнеса :
IndustrialБандридт :
1GДополнительные фильтры :
Unmanaged
