Overview
IES7221-24PGE4GC-AC, 24 Ports Industrial PoE Switch,with 4 Gigabit RJ45/SFP Combo Uplink,24 PoE+ Ports@500W power budget, DIN-Rail mount
Features

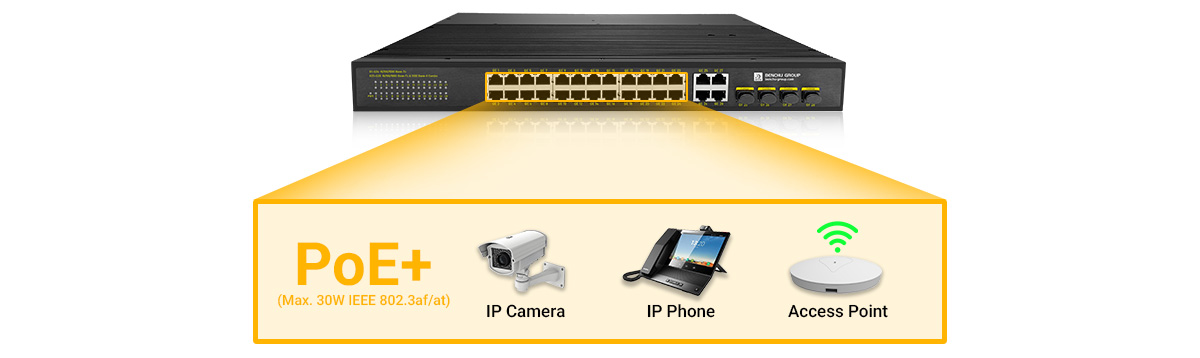

24 PoE Ports for Power and Connectivity
This industrial PoE switch features 24 ports that combine data and power transmission, providing seamless connectivity for devices like IP cameras, wireless access points, and VoIP phones. With support for IEEE 802.3af/at standards, it delivers up to 30W per port, enabling efficient power delivery to high-powered devices. The integrated PoE functionality reduces cabling requirements, simplifying deployment in challenging environments such as industrial facilities, outdoor installations, and remote locations where traditional power sources may not be accessible.
4 Gigabit RJ45/SFP Uplink Ports for High-Speed Backhaul
Equipped with 4 uplink ports that support both RJ45 and SFP modules, this 24 port industrial PoE switch ensures flexible high-speed connections to core networks or long-distance deployments. The uplink ports deliver gigabit speeds, making them ideal for handling large data transfers and connecting to backbone networks. Their versatility supports both copper and fiber modules, enabling reliable and scalable connectivity across various networking setups, including industrial sites and extended surveillance systems.
Industrial-Grade Design for Harsh Environments
This 24 port industrial PoE switch is built to withstand the rigors of industrial environments, featuring a rugged metal housing, wide operating temperature range(-30℃~75℃), and protection against shocks and vibrations. Its robust design ensures reliable performance in challenging conditions such as factories, outdoor enclosures, and transportation systems. Compliance with industrial standards makes it a dependable choice for mission-critical applications, even in extreme weather or high-temperature areas.
Plug-and-Play Simplicity
Designed for quick and hassle-free deployment, this unmanaged industrial PoE switch requires no complex configuration. Simply connect the devices, and the switch automatically optimizes the connection. With support for auto-negotiation and auto-MDI/MDIX, it ensures maximum compatibility with a variety of devices. The plug-and-play functionality is ideal for non-technical users, saving time and effort during installation in large-scale PoE-powered surveillance or industrial automation projects.
High PoE Power Budget for Demanding Applications
This switch supports a high PoE power budget, capable of delivering power to all 24 ports simultaneously. This is critical for applications requiring multiple high-powered devices, such as large-scale surveillance systems or wireless access points in industrial environments. The ability to power multiple devices without overloading ensures smooth and reliable operation, reducing the need for additional power sources or injectors.

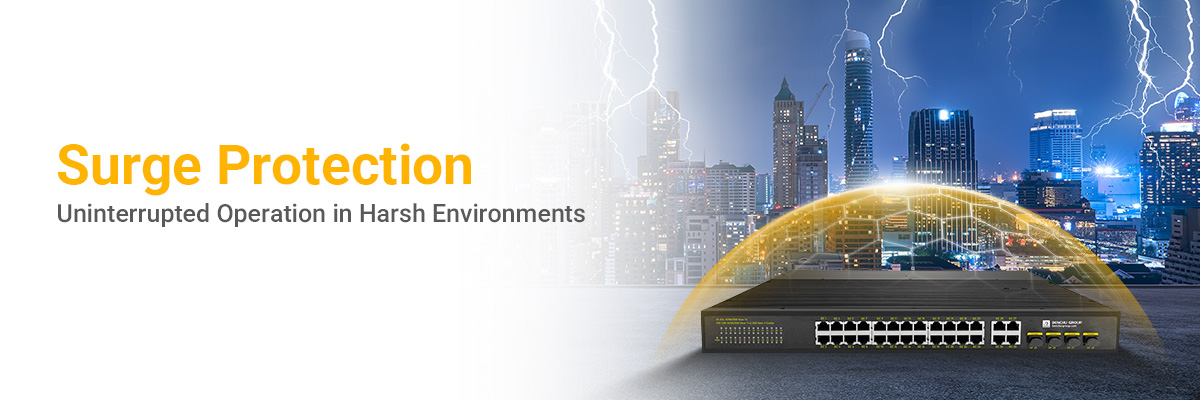

Surge Protection and Reliable Performance
Integrated surge protection safeguards the switch and connected devices against power spikes and lightning strikes, ensuring uninterrupted operation in unpredictable industrial environments. This feature is particularly valuable in outdoor setups or areas prone to electrical disturbances, offering peace of mind for network reliability. Combined with its durable construction, the switch ensures long-term stability for critical systems.
Fanless Design for Silent Operation
This 24 port industrial PoE switch employs a fanless design that ensures silent operation while reducing dust accumulation. This design improves the device’s durability and makes it suitable for noise-sensitive environments like control rooms or office-adjacent industrial setups. Despite the absence of fans, the switch’s efficient heat dissipation ensures consistent performance, even during prolonged usage in high-temperature conditions.

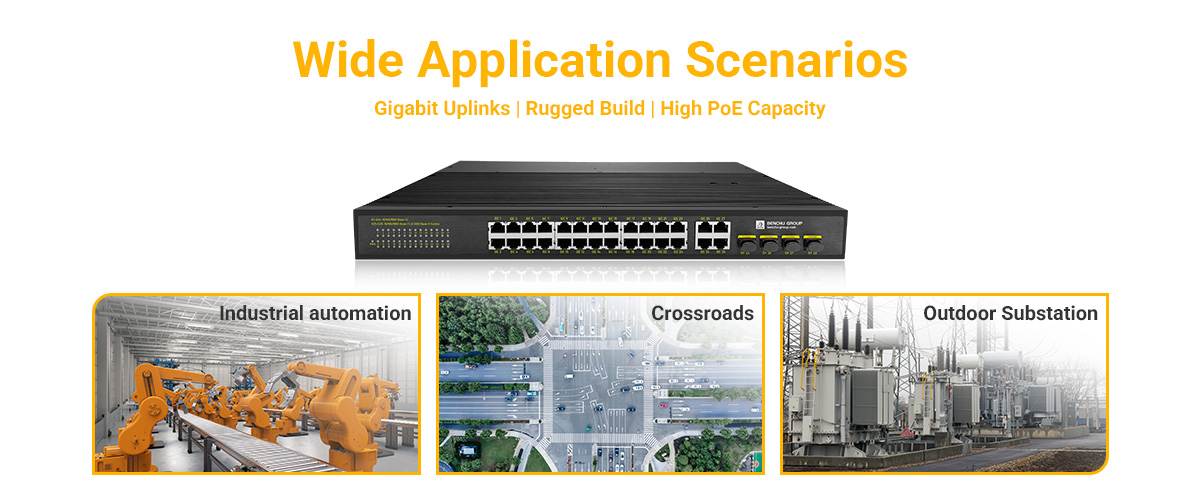

Wide Application Scenarios
This 24-port PoE switch is ideal for diverse applications, including industrial automation, large-scale IP surveillance, smart city deployments, and wireless network expansion. Its rugged build, high PoE capacity, and gigabit uplinks make it a versatile solution for powering and connecting devices in complex environments. Whether used in outdoor installations or factory floors, it delivers reliable performance and simplifies network deployment, reducing both infrastructure costs and setup time.
Connectivity Solutions
24 Port Gigabit Industrial PoE Switch with 4 Gigabit RJ45/SFP Combo Uplink
Specification
Технические характеристики :
IES7221-24PGE4GC-ACМедные порты 10M/100M/1G RJ45 :
24Комбинированный гигабитный R4J5 и SFP :
4Порты PoE/PoE+ :
24Питание через Ethernet :
*Стандарт PoE :
IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over EthernetТип источника питания PoE :
End-span: 1/2 (+), 3/6 (-)Выходная мощность PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Технические характеристики производительности :
*Буферная память пакетов :
4.2 MbРежимы переадресации :
Store-and-forwardПропускная способность :
64 GbpsСкорость пересылки пакетов :
47.62Mpps (64 byte packet size)Размер базы данных MAC-адресов :
8K (48-bit MAC ad-dresses)Поддержка больших кадров :
9KСетевые протоколы IEEE :
*Протоколы :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlМониторинг :
*светодиоды :
YesНа порт :
Speed, Link, Activity; PoE in different modeЗа устройство :
PowerФизические характеристики :
*Размеры (ширина * глубина * высота) :
440 x 290 x 46mm (17.32 x 11.42 x 1.81 in)Масса :
6.4 kg (14.11 lb)Требования к питанию :
AC 100~260V, redundant power with reverse polarity protectionПотребляемая мощность :
500W (when all ports used, line-rate traffic and max PoE)максимальная мощность :
15W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Энергопотребление в режиме ожидания :
9W (all ports link-down standby) (Watts)Энергоэффективный Ethernet (EEE) :
Yes (deactivated by default)Вентилятор :
FanlessЭкологические характеристики :
*Рабочая Температура :
-40° to 85°C (-40° to 185°F)Рабочая влажность :
95% maximum relative humidity (RH), non-condensingРабочая высота :
10,000 ft (3,000 m) maximumТемпература хранения :
-40° to 85°C (-40° to 185°F)Влажность при хранении (относительная) :
95% maximum relative humidity, non-condensingВысота хранения :
10,000 ft (3,000 m) maximumИсполнительный стандарт и защита :
*Молниезащита :
*МЭК61000-4-3 (РС) :
10V/m (80~1000MHz)FCC, часть 15/CISPR22 (EN55022) :
Class BМЭК 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (импульсное магнитное поле) :
1000A/mIEC61000-4-10 (затухающие колебания) :
30A/m, 1MHzIEC61000-4-12/18 (ударная волна) :
CM 2.5kV, DM 1kVМЭК61000-4-4(ЭФТ) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (синфазная передача) :
30V, 300V, 1sМЭК61000-4-2 (ЭСР) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Радиочастотная передача) :
10V(150kHz~80MHz)МЭК61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (перенапряжение): силовой кабель :
CM±4kV/ DM±2kV, Data cable: ±4kVМеханические свойства :
*МЭК60068-2-6 :
Anti VibrationМЭК60068-2-32 :
Free FallМЭК60068-2-27 :
Anti ShockЭлектромагнитное излучение и иммунитет :
*Сертификаты :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Безопасность :
*Сертификаты безопасности :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Гарантия и поддержка :
*Ограниченная гарантия на оборудование :
Limited Lifetime*Техническая поддержка по телефону и электронной почте* :
Limited Lifetime*Круглосуточная онлайн-чат технической поддержки :
Limited Lifetime*содержимое пакета :
*Все модели :
Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideВид бизнеса :
IndustrialБандридт :
1GДополнительные фильтры :
Unmanaged
