Active to Passive PoE Converter

Direct-Plug Active PoE to 24V Passive PoE Converter | IEEE 802.3af/at 48V to 24V Passive PoE Adapter | PSE202-ACP24

Direct-Plug Active PoE to 24V passive PoE converter with RJ45 input, 180mm pigtail cable, and RJ45 male output connector.

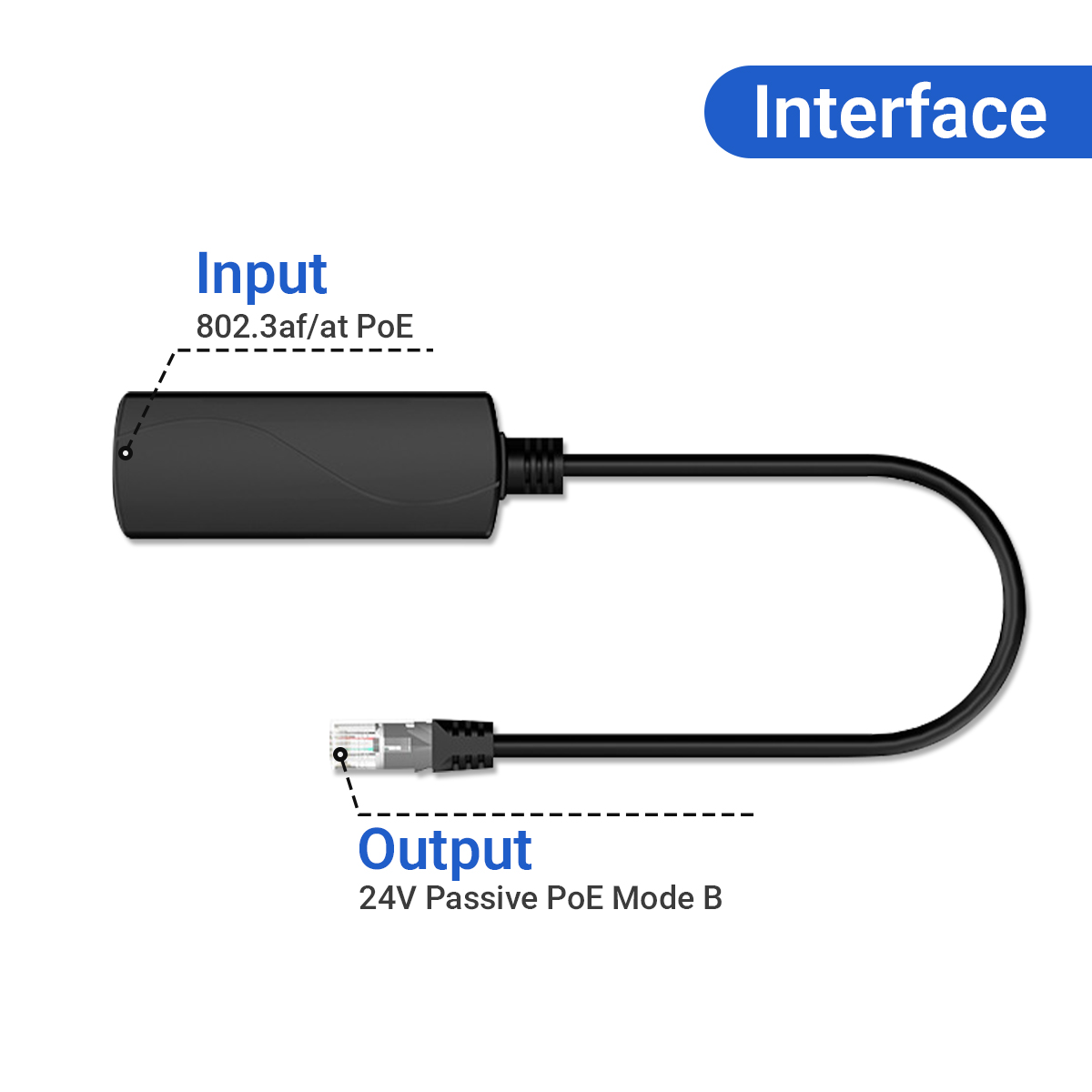

Device-side direct-plug interface of an Active PoE to 24V Passive PoE Converter

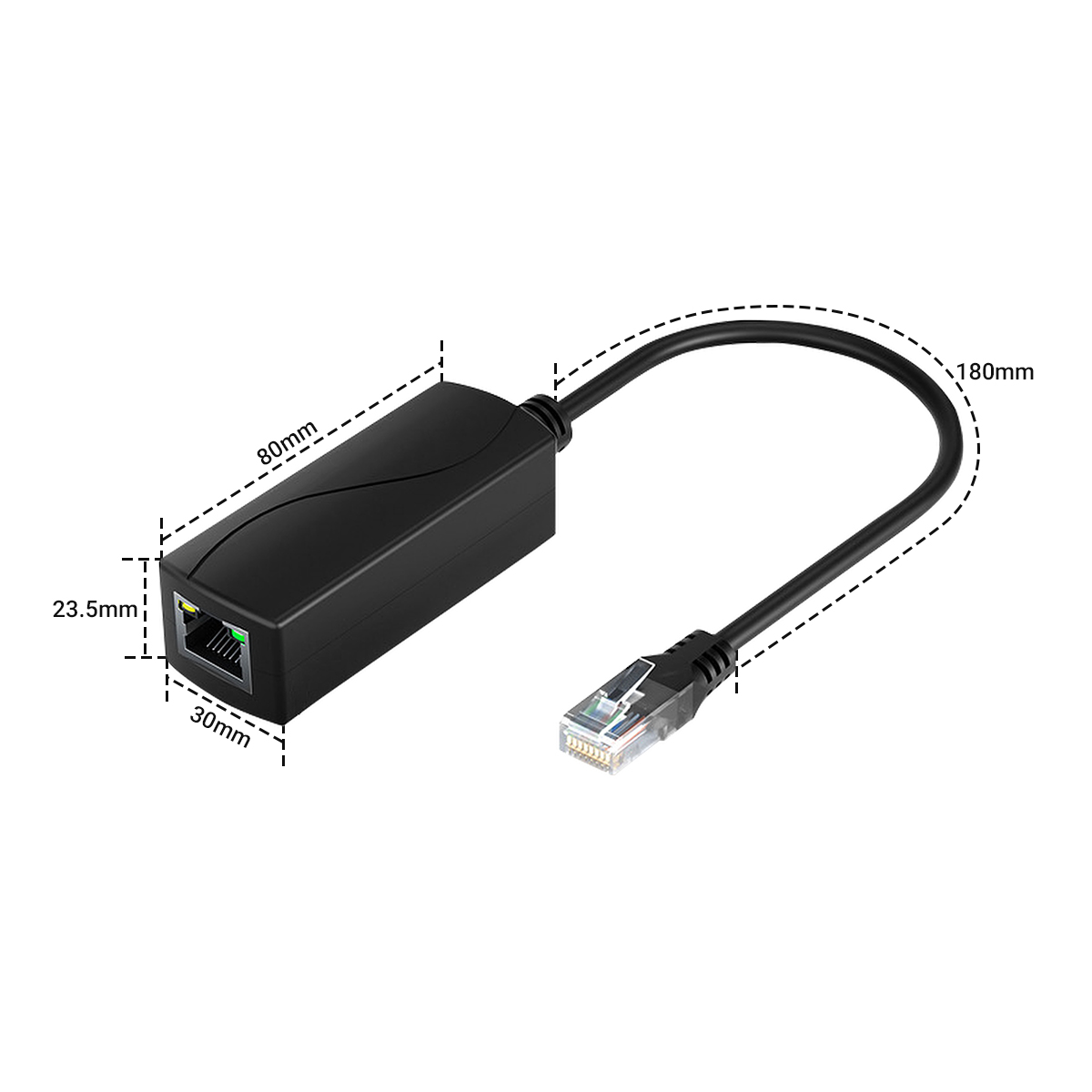

Dimension drawing of direct-plug active PoE to 24V passive PoE converter showing housing length, width, height, and pigtail cable length.

Direct-Plug Active PoE to 24V Passive PoE Converter | IEEE 802.3af/at 48V to 24V Passive PoE Adapter | PSE202-ACP24

Get Editable Specs & Price List →

Convert standard IEEE 802.3af/at active PoE (48V–56V) to 24V passive PoE. Direct male RJ45 plug connects into end devices without extra patch cables.

Product Highlights

    Direct Device-Mount Design: Integrated RJ45 Male Plug connects directly into the end device’s network port—eliminating extra patch cords.

    Active IEEE 802.3af/at Input: Seamlessly accepts standard 48V–56V PoE input from any Managed/Unmanaged PoE Switch or Injector.

    Regulated 24V DC Passive Output: Delivers steady 24V DC / 1A (24W Max) passive PoE over Mode B (Pins 4,5+ / 7,8-) for wireless CPEs and APs.

    10/100/1000M Gigabit Data Passthrough: Full Gigabit wire-speed transmission with low latency, ideal for high-bandwidth wireless backhaul.

    Compact ABS Molded Housing: Lightweight, flame-retardant ABS enclosure designed for space-constrained junction boxes or direct AP mounting.

    Plug-and-Play Installation: Hardware-based voltage step-down; requires no software setup.

Direct Device-Mount Active to Passive PoE Converter | 802.3af/at to 24V Gigabit Plug-and-Play Adapter

Direct Attachment to Terminal Devices—Eliminating Extra Patch Cords for Space-Saving 24V Step-Down

The PSE202-ACP24 Direct Device-Mount Active to 24V Passive PoE Converter delivers an innovative, direct-plug solution for integrating 24V passive PoE hardware—such as Ubiquiti airMAX, MikroTik RouterBOARDs, outdoor CPEs, and access control terminals—into standard IEEE 802.3af/at (48V–56V) active network switch infrastructures. Featuring a standard RJ45 female input port and an integrated male RJ45 output plug, this compact converter connects directly into the Ethernet interface of the end device. By eliminating the need for an additional patch cord between the converter and terminal device, the 48 to 24v poe converter PSE202-ACP24 reduces field connection points, lowers material inventory costs, and simplifies cabinet wiring. Built in a compact ABS molded housing, it receives standard 48V active PoE transmission over network cables up to 100 meters, stepping down to regulated 24V DC / 1A passive output locally at full Gigabit wire speed.

Target Application Scenarios

Designed specifically for edge network devices requiring 24V passive power input in commercial and industrial projects:

Outdoor Wireless CPEs & PtP Bridges

Directly powers 24V outdoor wireless CPEs, point-to-point bridges, and sector APs (such as Ubiquiti airMAX, Bullet, UniFi APs, and MikroTik RouterBOARDs) directly from standard 48V PoE switches without extra patch cables or local AC outlets.

Access Control & Door Intercom Systems

Ideal for powering 24V RFID door controllers, biometric access panels, and SIP video intercom terminals installed in shallow gang boxes, plugging directly into the device's rear network port to save space.

Industrial IP Surveillance & IoT Sensors

Provides steady 24V PoE power to specialized industrial IP cameras, PTZ controllers, and IoT sensor gateways mounted inside tight outdoor junction boxes or pole-mount enclosures.

Key Product Features & Technical Advantages

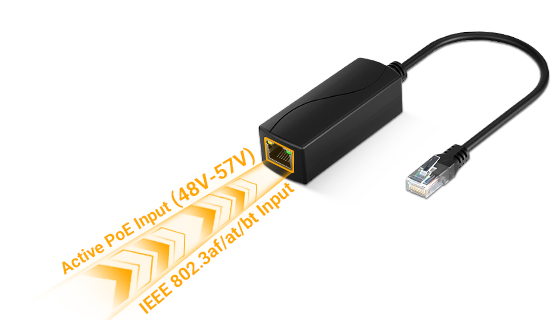

Industrial active-to-passive PoE converter receiving IEEE 802.3af/at/bt compliant 48V-57V power from standard PoE switch with hardware handshake detection.

IEEE 802.3af/at/bt Compliant Input

Accepts standard IEEE 802.3af/at/bt active PoE input (48V–57V) with full hardware handshake recognition, ensuring safe interoperability with any certified upstream PoE switch or injector.

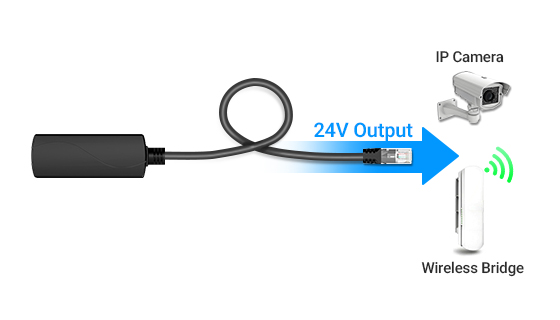

Stable regulated 24V DC passive PoE output via Mode B pinout (pins 4,5+ / 7,8-) powering legacy 24V outdoor wireless CPEs and IP cameras without voltage fluctuation.

Regulated 24V Passive PoE (Mode B)

Delivers stable, regulated 24V DC passive PoE output (Mode B: Pins 4,5+ / 7,8–) to safely power legacy 24V devices like Ubiquiti airMAX, Axis M30 series, and industrial sensors without voltage drift.

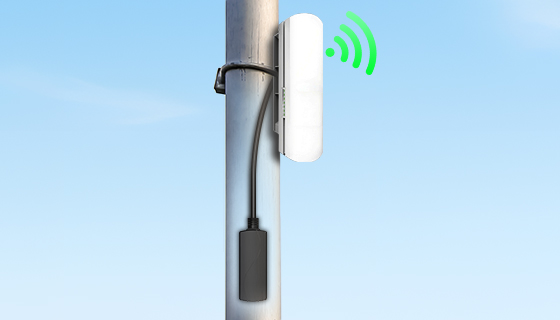

80x30x23.5mm inline active-to-24v-passive PoE converter with 180mm pigtail directly powering wireless CPEs like Ubiquiti NanoStation and access control panels in tight mounting spaces.

CPE & Access Control Optimized

Specifically engineered for 24V passive PoE wireless CPEs (Ubiquiti, MikroTik, TP-Link Pharos) and door access controllers. The 80×30×23.5mm body + 180mm pigtail fits inside pole-mount enclosures and door header cavities where bulky adapters cannot fit.

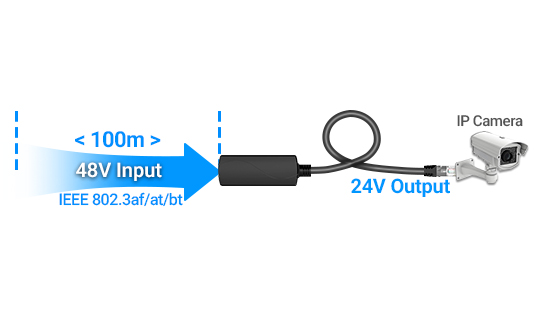

Diagram showing standard 48V PoE transmitting 100 meters with minimal loss, then converting to regulated 24V at the endpoint to solve voltage drop issues for remote wireless CPEs and access controllers.

Eliminates 24V Voltage Drop

Overcomes the <50m distance limit of direct 24V passive PoE by leveraging 48V standard PoE for low-loss transmission up to 100m. Converts to stable 24V only at the device end, ensuring full voltage delivery to remote CPEs and door controllers without costly cable upgrades.

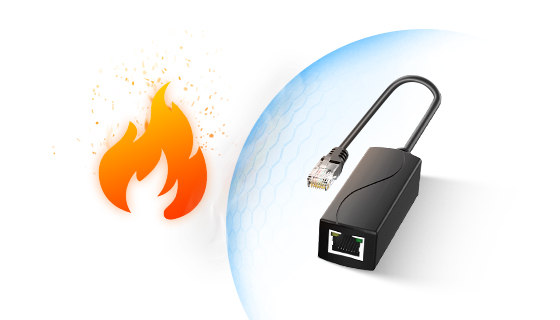

High-impact UL94 V-0 flame-retardant ABS plastic enclosure of 48V-to-24V PoE converter providing lightweight yet rugged protection for field installations.

UL94 V-0 Flame-Retardant ABS

Housed in high-impact, UL94 V-0 certified flame-retardant ABS plastic—combining lightweight portability with industrial-grade mechanical and fire safety compliance for OEM integration.

Gigabit Ethernet RJ45 ports maintaining full-duplex 1000Mbps wire-speed data throughput with zero latency for HD video backhaul and wireless mesh networks.

1Gbps Full-Duplex Wire-Speed

Maintains full-duplex 10/100/1000Mbps wire-speed data passthrough with <1μs latency and zero packet loss—critical for HD surveillance backhaul and low-latency wireless mesh links.

Industrial-grade active-to-passive PoE converter validated for continuous 24/7 operation across -30°C to +75°C ambient range in unheated enclosures and desert installations.

-30°C to +75°C Industrial Range

Validated for continuous 24/7 operation across -30°C to +75°C ambient range—exceeding commercial-grade limits and ensuring reliability in unheated NEMA enclosures, arctic sites, and desert solar farms.

Built-in 6kV TVS surge suppressor and ESD clamping diodes protecting 24V PoE converter and downstream equipment from lightning-induced transients and electrostatic discharge.

6kV TVS Surge & ESD Guard

Integrated 6kV TVS surge suppressors and ESD clamping diodes on both input/output ports protect sensitive 24V wireless gear from lightning-induced transients and field electrostatic discharge.

Active PoE to 24V Passive PoE Converter Connectivity Solutions



Bridge standard 48V–56V active PoE networks with 24V passive outdoor CPEs and wireless bridges seamlessly using the PSE200-ACP24 step-down converter.

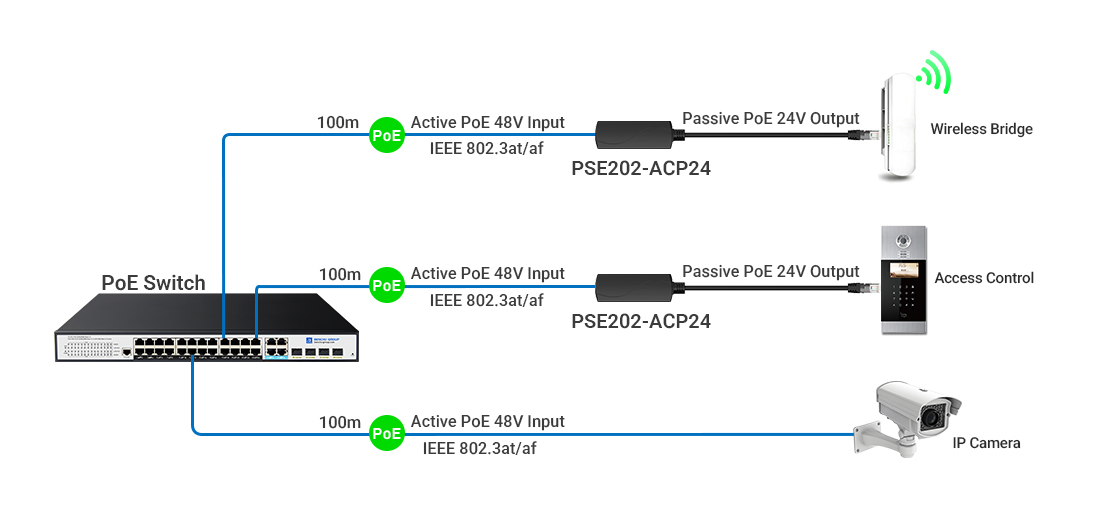

Topology diagram showing standard IEEE 802.3af/at active PoE switch connecting to PSE200-ACP24 in a weather-protected box to power a 24V outdoor wireless bridge.

Typical Application Scenarios

  • 1. Standard Active Switch to 24V Wireless Bridge Conversion Safely connect 24V passive wireless CPEs or point-to-point (PTP) bridges to an enterprise IEEE 802.3af/at active PoE switch. The PSE200-ACP24 negotiates power safely via active 802.3af/at handshake and steps down the voltage to a regulated 24V output (Mode B: Pins 4,5+ / 7,8-), protecting legacy 24V wireless gear from high-voltage damage while maintaining full Gigabit backhaul.
  • 2. Protected Outdoor Cabinet & Enclosure Deployment Because the non-waterproof PoE input port cannot be exposed directly to open rainfall, the unit is intended for placement inside outdoor waterproof junction boxes, equipment cabinets, or sheltered eaves. Its output side features a dedicated waterproof connector to ensure a sealed connection for the downstream cable extending out to remote wireless APs.
  • 3. Extended Operating Temperature Resistance (-30°C to +75°C) Powered entirely via the incoming Ethernet bus line with zero external AC power required, the converter withstands harsh environmental temperatures ranging from -30°C up to +75°C inside outdoor enclosures, making it ideal for year-round operation across unheated industrial sites and extreme weather conditions.

Technical Specifications

Hardware Parameter Details / Specification Limits
Product Model PSE202-ACP24 (Desktop / Pigtail Version)
Equipment Type Active-to-Passive PoE Converter with Integrated 180mm RJ45 Pigtail (48V to 24V Step-Down)
Upstream Input Port 1 x RJ45 Female Port, Supports IEEE 802.3af/at Active PoE Input (48V–56V; Requires Ethernet Cable Connection to PSE)
Downstream Output Integrated 180mm RJ45 Male Pigtail, Regulated 24V Passive PoE Output (Mode B: Pins 4,5+ / 7,8-; Direct Plug to Device)
Data Rate & Processing 10/100/1000Mbps Full Gigabit Passthrough (Non-blocking wire-speed hardware forwarding)
PoE Handshake Recognition Standard IEEE 802.3af/at Hardware Handshake (Safe detection before drawing power from upstream PSE)
Local Power Requirement None Required (100% bus-powered via Ethernet; zero external AC adapter or wiring)
Physical Dimensions 80mm (L) × 30mm (W) × 23.5mm (H) (Ultra-compact desktop form factor; excludes pigtail length)
Enclosure Material High-Impact Flame-Retardant ABS Plastic (Desktop / Indoor Enclosure Grade; Non-Waterproof)
Surge & ESD Protection Integrated TVS Surge Protection & 4KV ESD Immunity (Protects downstream 24V devices from upstream transients)
Management Type Unmanaged Plug-and-Play (Inline hardware conversion; zero software/driver configuration)
Climatic Operational Limits Operating: -30°C to +75°C (-22°F to 167°F); Storage: -40°C to 85°C; Humidity: 5%~95% non-condensing
Installation Environment Indoor / Protected Enclosure Only (Not rated for direct outdoor/rain exposure; suitable for pole-mount boxes, door headers, desktop, weak-current panels)

Compare Active to Passive PoE Converter Models



Choose the right IEEE 802.3af/at to 24V Passive PoE converter for your outdoor wireless CPE, AP, or IP surveillance deployment

Model
& Parameters		 PSE202-ACP24 Device-Side Direct-Plug Active to Passive PoE Converter
PSE202-ACP24
Device-Side Direct-Plug
 PSE204-ACP24 Switch-Side Direct-Plug Active to Passive PoE Converter
PSE204-ACP24
Switch-Side Direct-Plug
 PSE200-ACP24 Waterproof Cable Active to Passive PoE Converter
PSE200-ACP24
Waterproof Cable Type
Form Factor / Mounting Direct-Plug (Device End) Direct-Plug (Switch End) In-line Cable (Female Jack)
PoE Input Standard IEEE 802.3af/at Active PoE (48V-56V) RJ45 Port IEEE 802.3af/at Active PoE (48V-56V) RJ45 Plug IEEE 802.3af/at Active PoE (48V-56V) RJ45 Port
PoE Output 24V Passive PoE (Max 24W) RJ45 Plug 24V Passive PoE (Max 24W) RJ45 Port 24V Passive PoE (Max 24W) RJ45 Port
Data Rate 10/100/1000 Mbps Gigabit 10/100/1000 Mbps Gigabit 10/100/1000 Mbps Gigabit
Housing / IP ABS Flame-Retardant / IP40 ABS Flame-Retardant / IP40 ABS Flame-Retardant / IP40
Operating Temp -30°C to +75°C -30°C to +75°C -30°C to +75°C
Surge / ESD 4kV / 8kV 4kV / 8kV 4kV / 8kV
Action ← Current Page View Detail → View Detail →

Need help selecting the right PoE converter? Our engineering team can recommend the optimal voltage converter for your project. Contact OEM specialists →

Frequently Asked Questions (FAQ)



Solving 24V Passive PoE Compatibility, Voltage Drop & Space Constraints with Inline Pigtail Conversion

Q1: Why can't I just use a standard 24V passive PoE injector instead of this active-to-passive converter?

A standard 24V passive injector forces 24V onto the Ethernet cable from the start, suffering severe voltage drop beyond 30–50 meters and risking device underpowering. This converter accepts 48V active PoE from your switch over 100m, then steps down to regulated 24V only at the final 18cm via the integrated pigtail. You retain centralized 48V PoE management while guaranteeing full voltage delivery to remote CPEs or access controllers without mid-span repeaters.

Q2: Does this converter plug directly into my PoE switch port?

No. This model’s RJ45 male pigtail is the 24V output for direct connection to CPEs, cameras, or access controllers. Its input requires an Ethernet cable from your switch. For a version with an RJ45 male input that plugs directly into IEEE 802.3af/at PSE ports, please select model PSE204-ACP24.

Q3: What is the exact 24V passive PoE pinout, and does it support Gigabit data?

The converter outputs standard Passive PoE Mode B: Pins 4,5 positive (+) and Pins 7,8 negative (-), with data on Pins 1,2,3,6. It supports full-duplex 10/100/1000Mbps Gigabit passthrough across all four pairs with zero signal degradation. This pinout is natively compatible with Ubiquiti airMAX, MikroTik SXT/LHG/RB series, Hikvision/Dahua 24V access controllers, and virtually all 24V passive PoE Mode B devices.

Q4: Can I install this PoE to 24v passive adapter outdoors on a pole or in direct rain?

The adapter body is not waterproof and must be installed inside a weather-protected enclosure such as a pole-mount junction box, AP base housing, door header cavity, or indoor weak-current panel. Only the downstream 180mm pigtail connection to the outdoor CPE may be exposed. For fully waterproof outdoor deployments requiring direct rain exposure, please refer to our industrial-grade PSE200-ACP24-WP model with sealed output connector.

Q5: Why choose this desktop/pigtail version over bulkier industrial PoE converters?

At just 80×30×23.5mm with an integrated 180mm pigtail, this unit is engineered for space-constrained endpoints where traditional brick-style adapters or DIN-rail modules simply won’t fit. It eliminates the need for separate patch cables inside cramped CPE enclosures or door headers, reducing installation time and failure points. For server racks or industrial cabinets with ample space and rail mounting, our standard industrial version may be more appropriate.

Q6: Do you offer custom pigtail lengths or OEM branding for distributors?

Yes. As a direct manufacturer, we provide full OEM/ODM services including custom pigtail lengths (50cm, 1m, etc.), laser logo engraving, bespoke housing colors, and tailored packaging. All units are CE/FCC/RoHS certified. Contact our sales team with your project specifications for MOQ and lead time details.

Resource Download Center



Official datasheets, mechanical drawings & pinout diagrams for PSE202-ACP24 desktop/pigtail PoE converter.


PDF



PSE202-ACP24 Technical Datasheet

Complete specs for desktop/pigtail version: 80×30×23mm dimensions, 180mm RJ45 male pigtail output (24V Mode B: Pins 4,5+/7,8-), RJ45 female input (IEEE 802.3af/at), Gigabit passthrough, and CE/FCC/RoHS compliance. Includes installation notes for indoor/protected enclosure use only.

📥 Download Datasheet (PDF)
