Overview

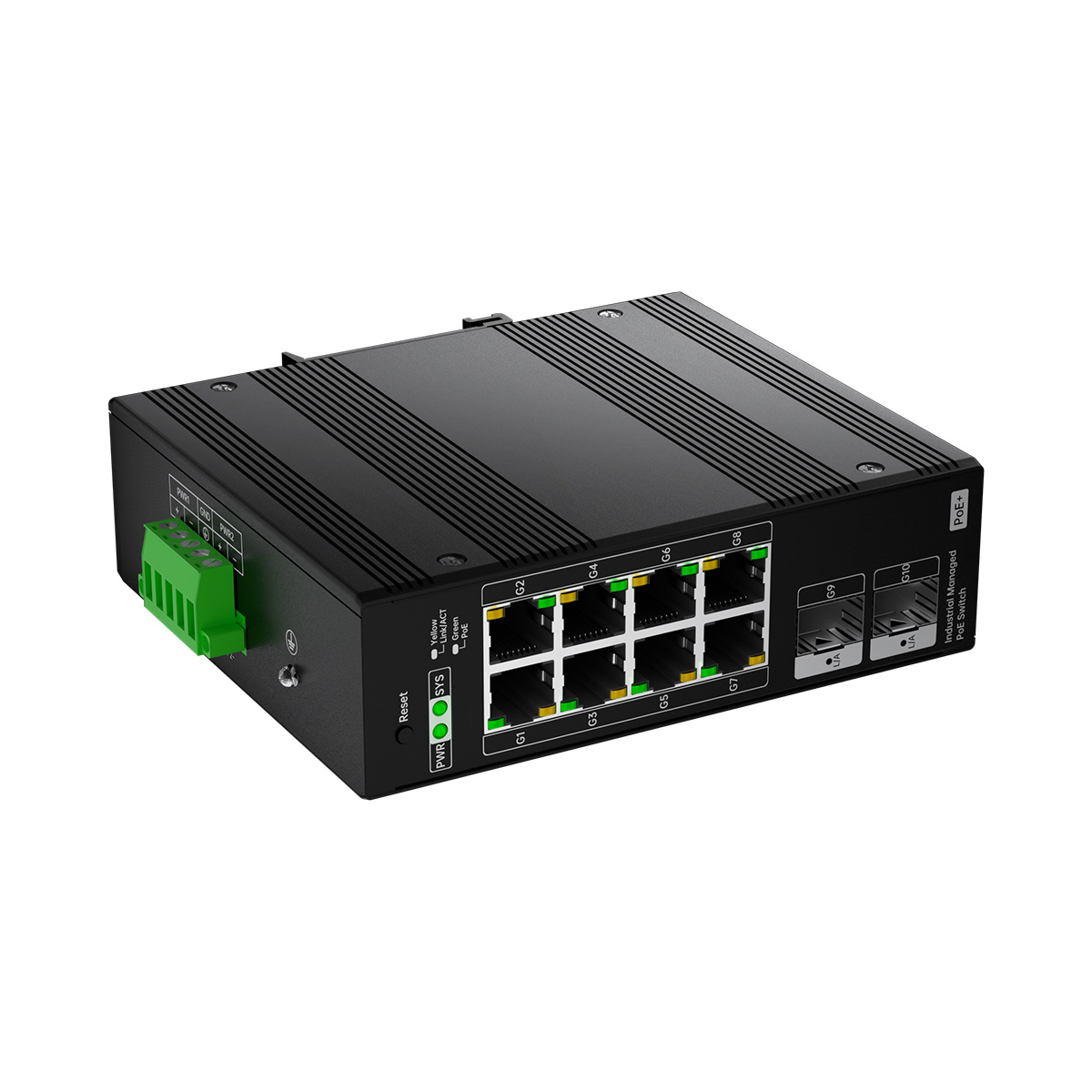

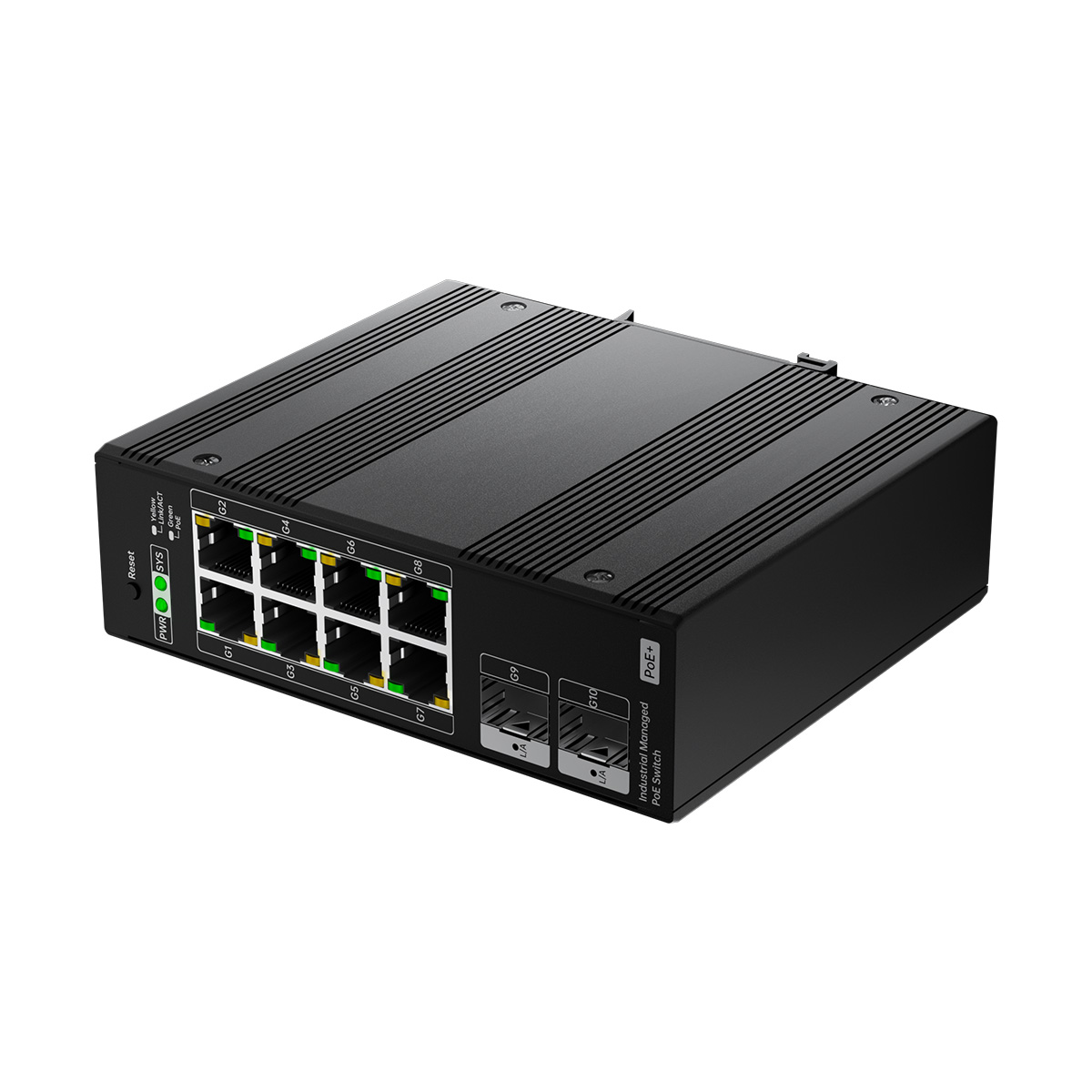

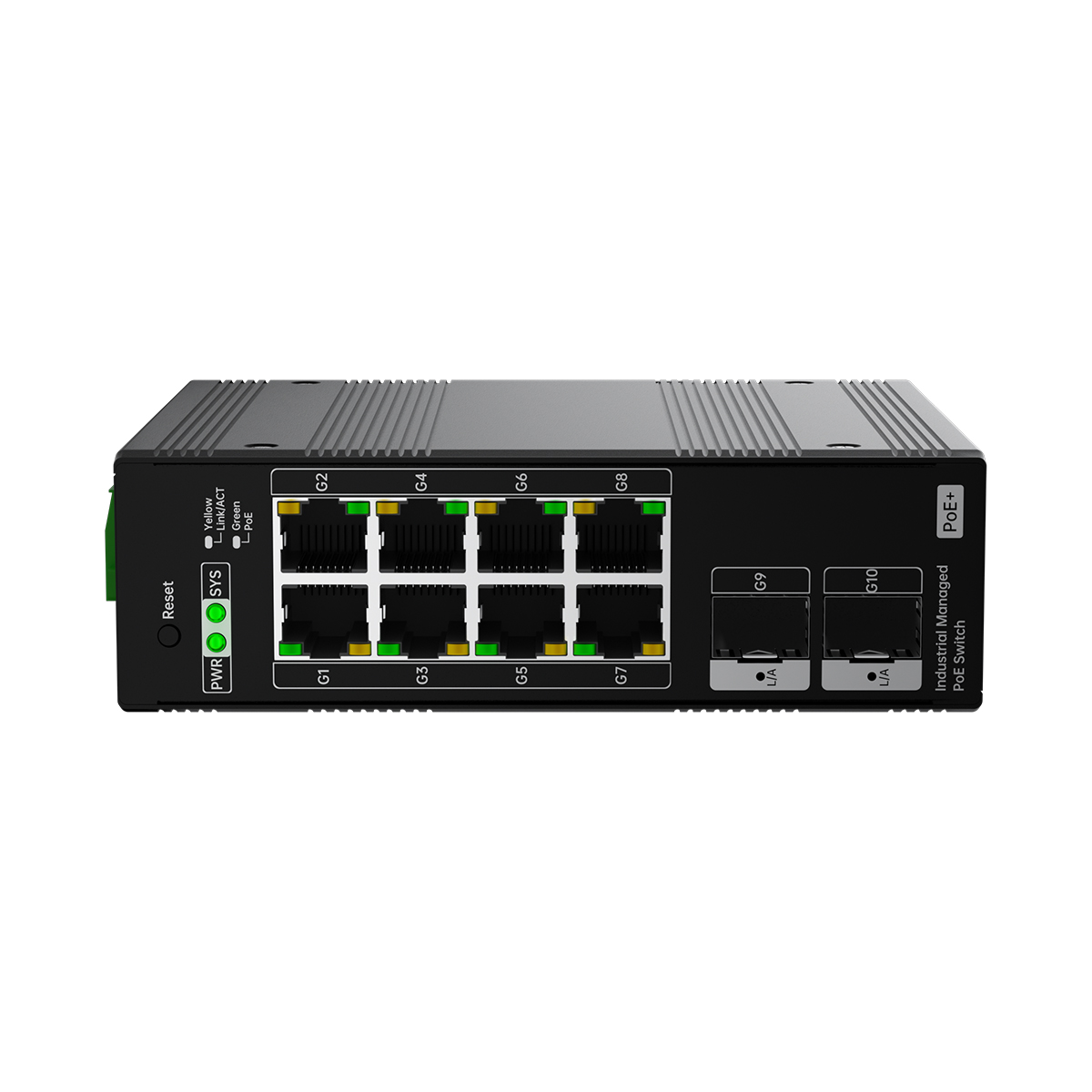

IES7311-8PGE2GF-DC, Web managed industrial PoE switch 8 port,with 2 gigabit SFP uplink,DIN-Rail mount
Features
Industrial Toughness & Wide Temp Range

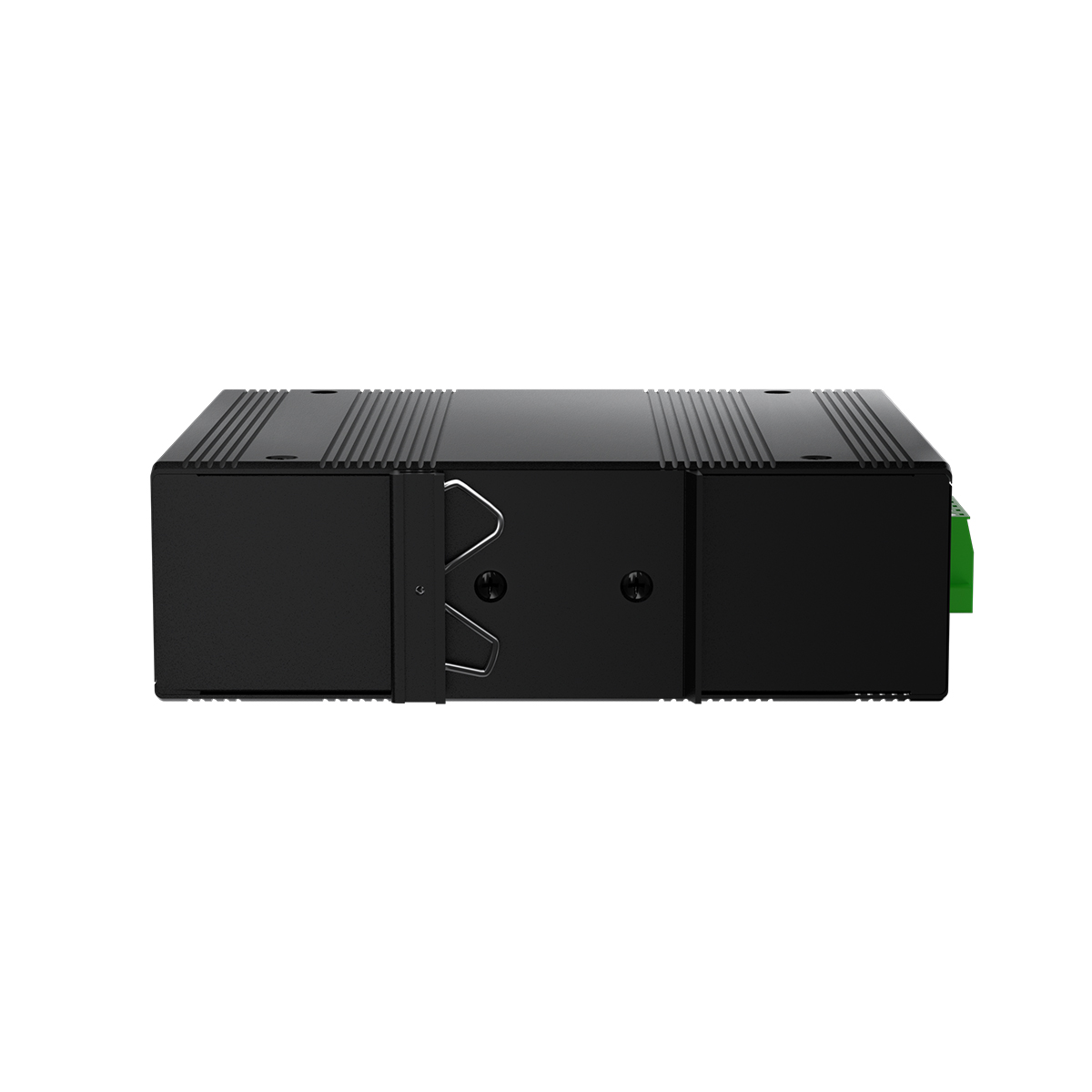

This 8 port industrial poe switch operates flawlessly from -40°C to 75°C with IP40 protection, 8KV surge defense, and rugged DIN rail mounting.Deploy worry-free in freezing warehouses, blazing factory floors, or dusty sites. Withstand voltage spikes from machinery and lightning. The compact rail-mount design saves space in control cabinets or roadside enclosures. Benefit: Slash maintenance costs and downtime with hardware built for harsh environments.
Flexible Gigabit SFP Uplinks
The web managed industrial PoE switch with dual SFP slots support fiber (single/mode) modules.Break the 100m Ethernet limit – extend networks up to 120km with fiber. Connect distant cameras, sensors, or other switches seamlessly. Avoid EMI noise in electrically noisy plants using optical links. Build scalable, interference-proof backbone networks across large industrial sites.
Smart PoE++ Power Management

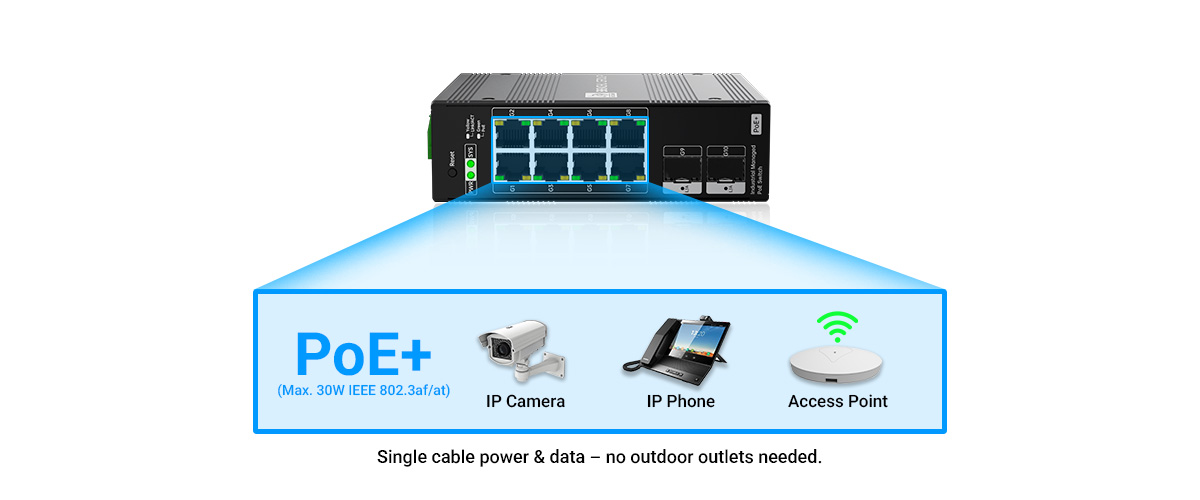

8× IEEE 802.3at PoE+ ports (30W/port, 240W total) with scheduling, priority, and remote reboot via web GUI.Power IP cameras, wireless APs, or access control over a single cable – no outdoor outlets needed. Schedule PoE on/off to save energy, reboot frozen devices remotely, and prioritize critical gear during power shortages. Cut installation costs 40%+ and ensure 24/7 uptime for powered devices.
Advanced Security & Traffic Control
VLAN isolation, QoS prioritization, bandwidth control, and storm protection.Separate OT/IT networks (e.g., isolate PLCs from office traffic). Guarantee bandwidth for video surveillance or VoIP using QoS. Block broadcast storms that cripple networks. Secure critical operations and eliminate lag for latency-sensitive applications.
Intuitive Web Management Interface
Browser-based centralized control for setup, monitoring, and diagnostics.Configure VLANs, PoE, or rings in minutes – no CLI expertise needed. Monitor port status, traffic flows, and power usage in real-time. Receive alerts for faults or attacks. Deploy and manage distributed industrial networks with IT-level control and 70% less effort.
Connectivity Solutions

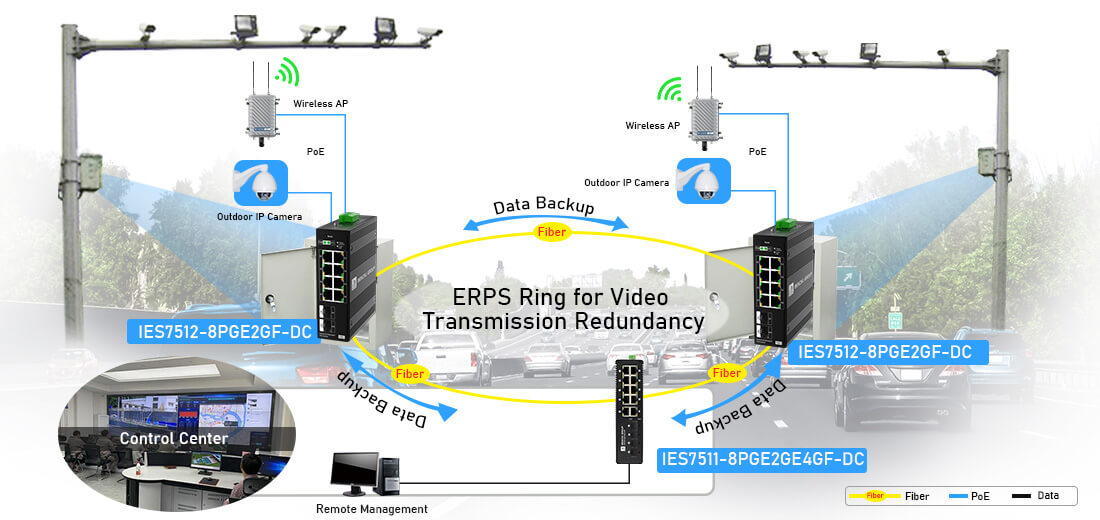

8 Port Gigabit Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution

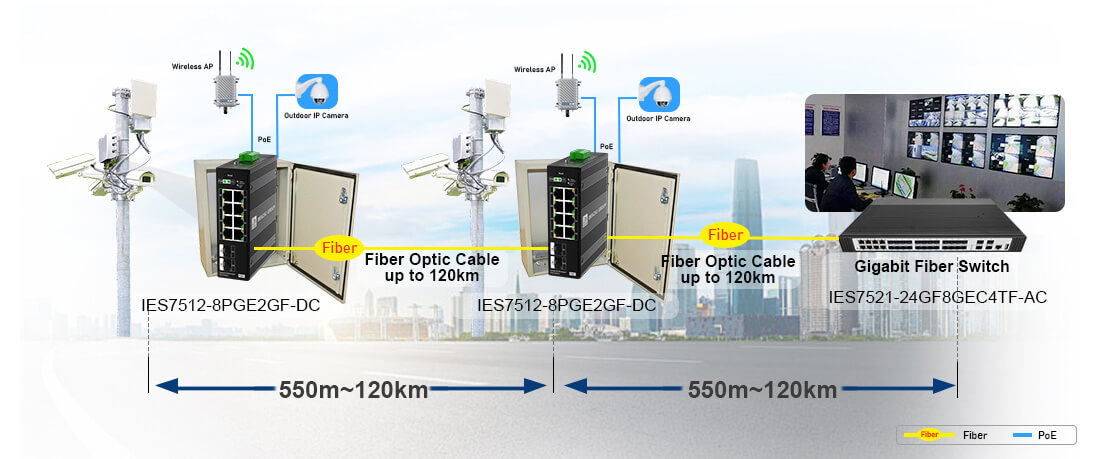

Web Managed Industrial PoE switch 8 port with 2 Gigabit SFP Uplink of connectivity Solution 2
Specification
Технические характеристики :
IE7311-8PGE2GF-DCМедные порты 10M/100M/1G RJ45 :
8Порты SFP 1,25G (оптоволоконные) :
2Порты PoE/PoE+ :
8Кнопка сброса :
YesПитание через Ethernet :
*Стандарт PoE :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetТип источника питания PoE :
End-span: 1/2 (+), 3/6 (-)Выходная мощность PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Бюджет мощности PoE :
120 WattsТехнические характеристики производительности :
*Буферная память пакетов :
1.6 MbРежимы переадресации :
Store-and-forwardПропускная способность :
24 GbpsСкорость пересылки пакетов :
14.88Mpps (64 byte packet size)Размер базы данных MAC-адресов :
4K (48-bit MAC ad-dresses)Поддержка больших кадров :
9KСреднее время между отказами :
181,365 hours (MTBF) @ 25°CСлужбы L2 — VLAN :
*Тегирование VLAN IEEE 802.1Q :
YesVLAN на базе IP :
YesVLAN на основе протокола :
YesУслуги L2 – доступность :
*Контроль шторма :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad — группы LAG (LACP) :
YesИЭЭЭ 802.3x :
YesПротокол быстрого связующего дерева IEEE 802.1w :
YesАгрегация ссылок :
*Службы сетевого мониторинга и обнаружения :
*SNMP :
v1, v2cСетевая безопасность :
YesИЭЭЭ 802.1x :
YesБезопасность на основе портов с помощью заблокированных MAC-адресов :
YesКачество обслуживания (QoS) :
*Ограничение скорости на основе порта :
Yes ingress and egressКачество обслуживания на основе порта :
YesСетевые протоколы IEEE :
*Протоколы :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXПротоколы 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1w (RSTP)Управление, мониторинг и устранение неполадок :
*Управление паролями :
YesДоступ через Интернет TLS/HTTPS (версия) :
Yes (v1.2)Загрузка/загрузка HTTP (прошивка) :
Yesсветодиоды :
YesНа порт :
Speed, Link, Activity; PoE in different modeЗа устройство :
PowerФизические характеристики :
*Размеры (ширина * глубина * высота) :
150 x 120 x 48 mm (5.91 x 4.72 x 1.89 in)Масса :
0.9 kg (1.98 lb)Защита корпуса :
P40 high-strength aluminum caseТребования к питанию :
DC 48~56V, redundant power with reverse polarity protectionмаксимальная мощность :
240WЭнергоэффективный Ethernet (EEE) :
Yes (deactivated by default)Вентилятор :
FanlessЭкологические характеристики :
*Рабочая Температура :
-40° to 85°C (-40° to 185°F)Рабочая влажность :
95% maximum relative humidity (RH), non-condensingРабочая высота :
10,000 ft (3,000 m) maximumТемпература хранения :
-40° to 85°C (-40° to 185°F)Влажность при хранении (относительная) :
95% maximum relative humidity, non-condensingВысота хранения :
10,000 ft (3,000 m) maximumИсполнительный стандарт и защита :
*Молниезащита :
*МЭК61000-4-3 (РС) :
10V/m (80~1000MHz)FCC, часть 15/CISPR22 (EN55022) :
Class BМЭК 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (импульсное магнитное поле) :
1000A/mIEC61000-4-10 (затухающие колебания) :
30A/m, 1MHzIEC61000-4-12/18 (ударная волна) :
CM 2.5kV, DM 1kVМЭК61000-4-4(ЭФТ) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (синфазная передача) :
30V, 300V, 1sМЭК61000-4-2 (ЭСР) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Радиочастотная передача) :
10V(150kHz~80MHz)МЭК61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (перенапряжение): силовой кабель :
CM±4kV/ DM±2kV, Data cable: ±4kVМеханические свойства :
*МЭК60068-2-6 :
Anti VibrationМЭК60068-2-32 :
Free FallМЭК60068-2-27 :
Anti Shockсодержимое пакета :
*Все модели :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideВид бизнеса :
IndustrialБандридт :
1GДополнительные фильтры :
WEB Managed
