5-Port FusionPoE Switch for Remote & Off-Grid Deployments, DC 12V/24V Input, 3-Port 60W PoE++ and 1-Port 24V Passive PoE Output
Challenges of Remote & Off-Grid Deployments

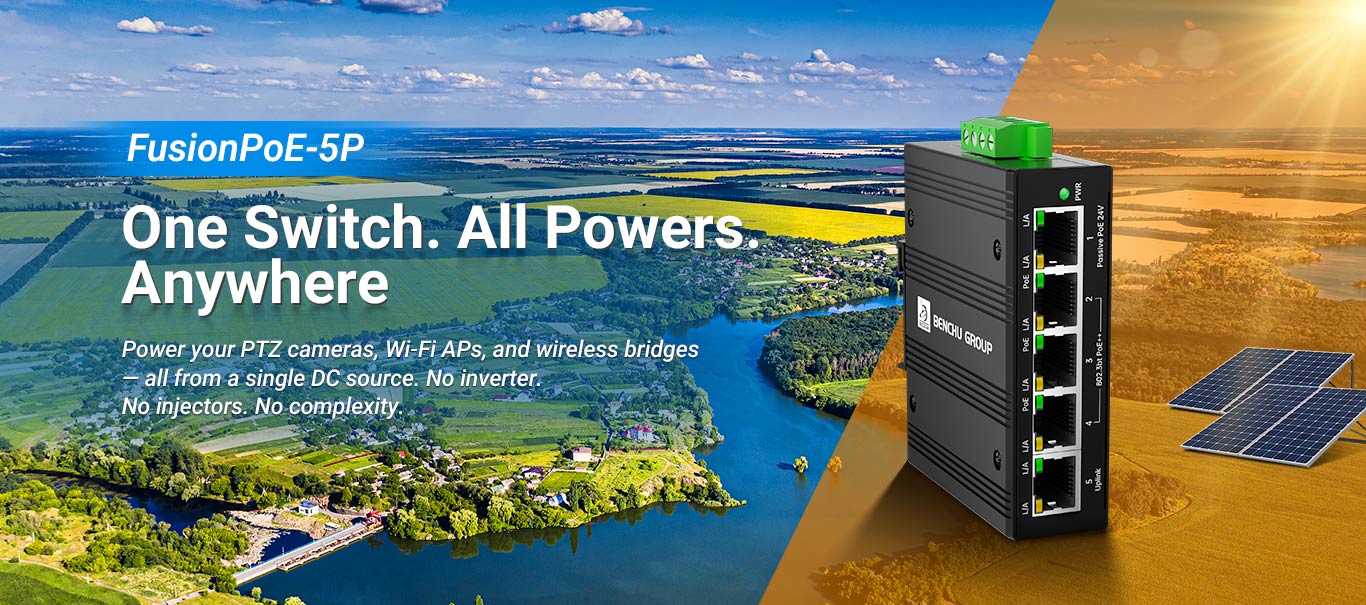

The Solution: FusionPoE-5P

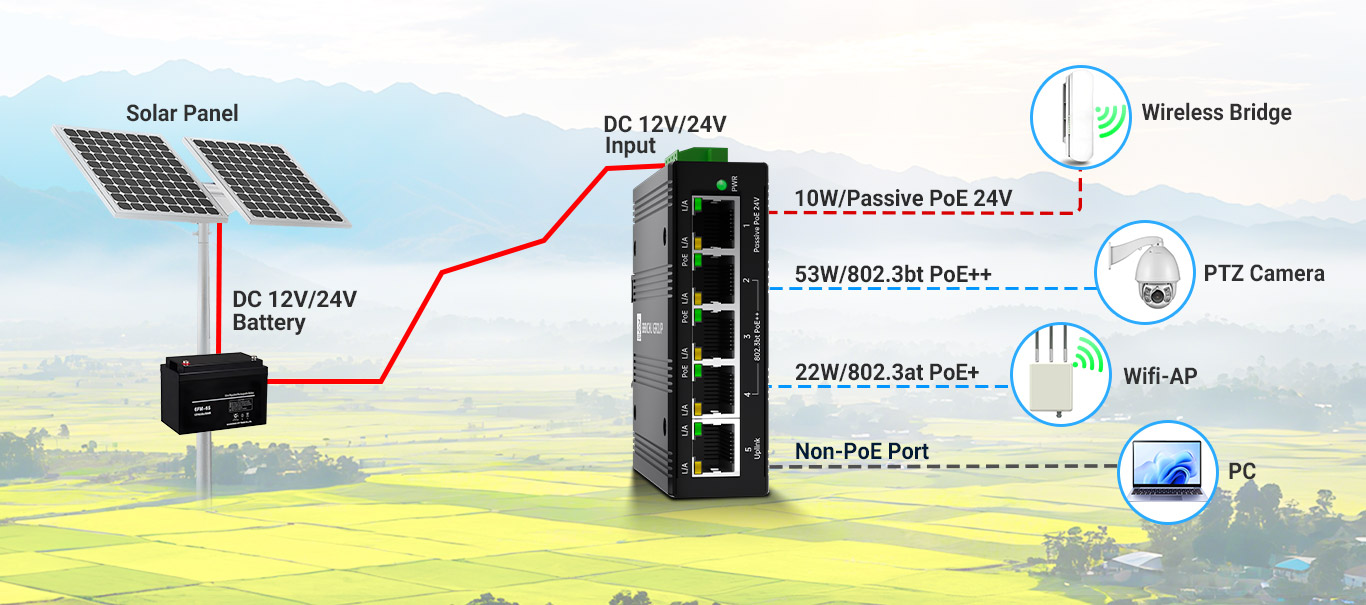

One Switch. Direct DC Input. Mixed Power Output.

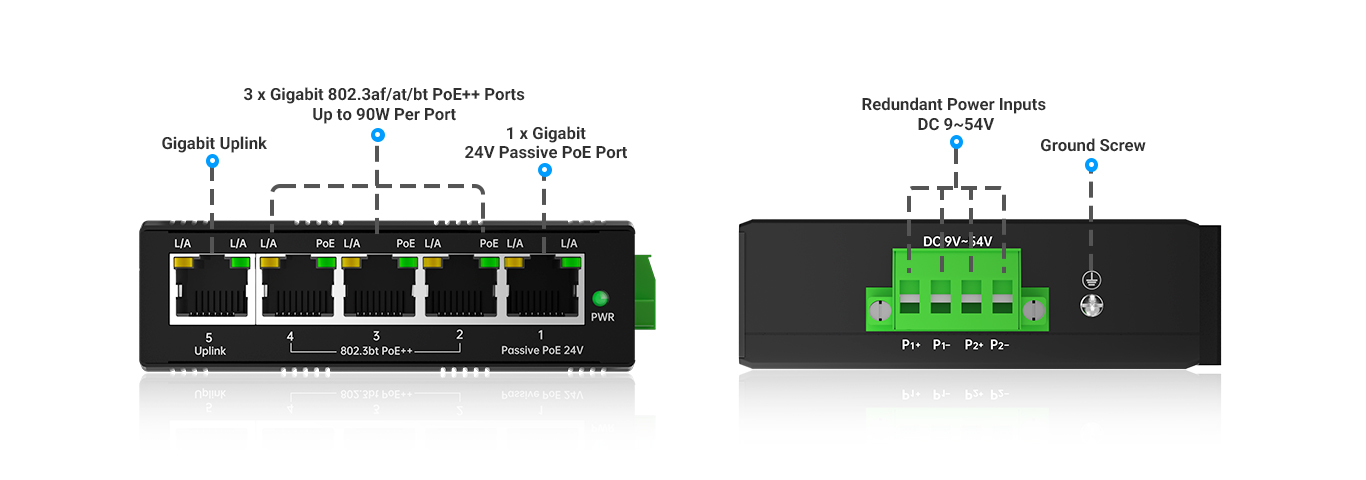

Multi-Service Hybrid Ports
One switch. Three power types. All devices covered.
Key Features
| Wide Voltage DC Input | 12-54V DC — works with solar batteries (12V/24V/48V), vehicle batteries, and industrial control panels. No inverter needed. |
| 3 x 60W PoE++ Ports | 802.3bt compliant, up to 60W per port. Powers PTZ cameras with heaters, Wi-Fi 6/7 APs, and edge computing devices. Backward compatible with 802.3at/af. |
| 1 x 24V Passive PoE Port | Dedicated port for wireless bridges from Ubiquiti, MikroTik, Cambium, and other 24V Passive devices. No injector needed. |
| Industrial Temperature Range | -40°C to 75°C — built for outdoor cabinets, cold climates, and desert heat. |
| 6kV Surge Protection | Built-in protection for all ports. Essential for solar sites and outdoor installations where lightning strikes are a risk. |
| Flexible Mounting | Desktop ready. Optional DIN-rail kit for industrial cabinets and vehicle installations. |

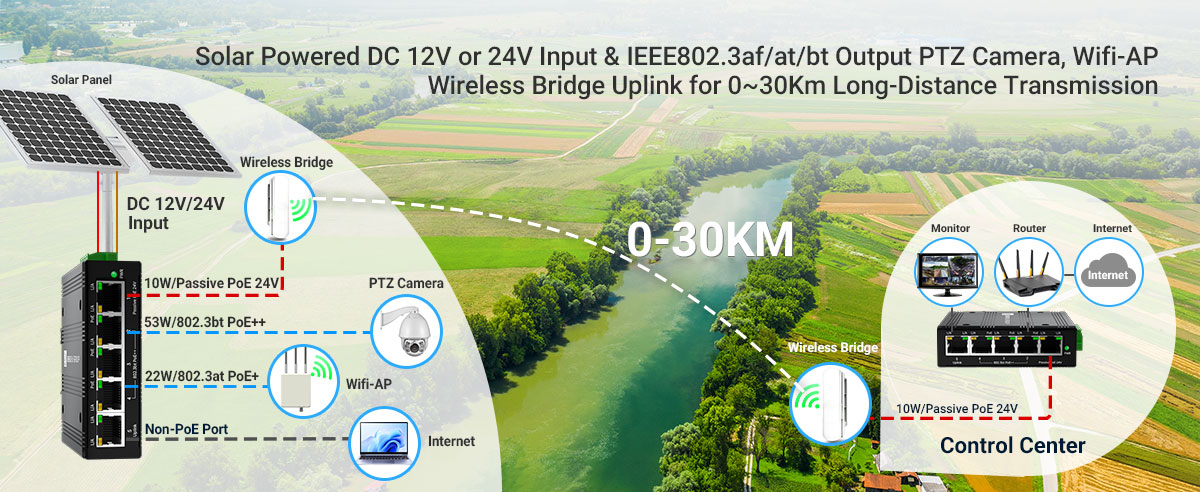

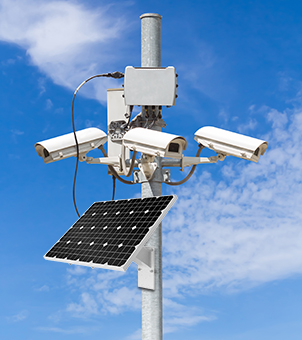

Use Cases: Where FusionPoE-5P Excels
Built for the Toughest Deployments
Comparison: FusionPoE-5P vs Traditional Setup
| Traditional Setup | FusionPoE-5P | |
| Components Needed | Inverter + PoE Switch + 2-3 Injectors | 1 FusionPoE Switch |
| Power Efficiency | 80-85% (dual conversion) | 95%+ (single conversion) |
| Installation Time | 2-3 hours | 30 minutes |
| Failure Points | 5-6 devices | 1 device |
| Space Required | Large cabinet | Compact |
| Total Cost | $300-$400 | Less than you think （Request Quote: Harry@benchu-group.com） |
Frequently Asked Questions
Q: Can I use this wide voltage PoE switch with Ubiquiti radios?
Yes. Port 4 provides 24V Passive PoE with standard pinout (4/5+, 7/8-), which is compatible with Ubiquiti airMAX, LiteBeam, NanoBeam, and other 24V devices.
Q: Do I need an inverter for solar installations?
No. The FusionPoE-5P accepts DC input from 12-54V, so you can connect it directly to your solar battery bank. This eliminates the inverter and improves efficiency by 15-20%.
Q: Can this DC 12V PoE switch power PTZ cameras with heaters?
Yes. Ports 1-3 deliver up to 60W each (802.3bt), which is sufficient for PTZ cameras with built-in heaters and defrosters.
Q: Is this switch suitable for vehicle installations?
Yes. The wide input range (12-54V) works with standard vehicle electrical systems (12V cars, 24V trucks/buses). The industrial design also handles vibration and temperature extremes.
Q: Does it come with a DIN-rail mount?
Yes, the DIN-rail mounting kit is included with the switch. No additional purchase required.
Technical Resources
5 Port FusionPoE Switch Datasheet ( Download ← )
Why Choose BENCHU FusionPoE Switch?
We Are the Manufacturer: Factory-direct pricing. No middlemen. You get better margins and direct technical support from our engineering team.
Engineering Support: Questions about your specific deployment? Our engineers are available to help with power budgeting, compatibility, and installation.
OEM/ODM Ready: Need your own branding? We offer custom logo printing, packaging, and specification customization for volume partners.
Reliable Supply Chain: ISO-certified manufacturing. Consistent quality. On-time delivery. We understand project timelines.
Global Deployments: Our products are deployed in solar farms across Africa, WISP towers in the US, and fleet vehicles across Australia.
3-Year Warranty: We stand behind our products. If it fails within 3 years due to manufacturing defect, we replace it. No questions.
Get Factory-Direct Pricing:
WhatsApp: +86-17322314741 Email: harry@benchu-group.com (We'll send a quote within 12 hours.)
