Overview

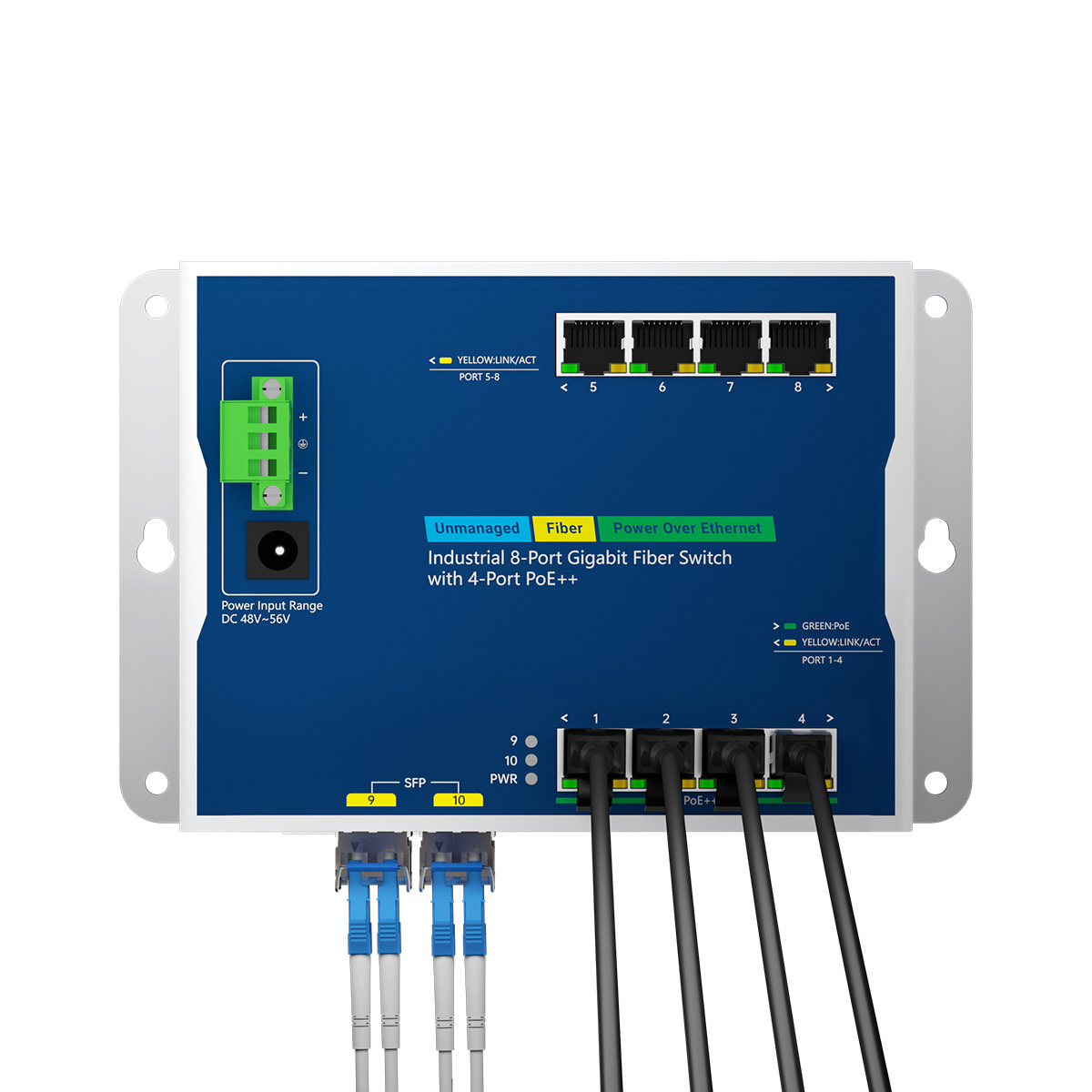

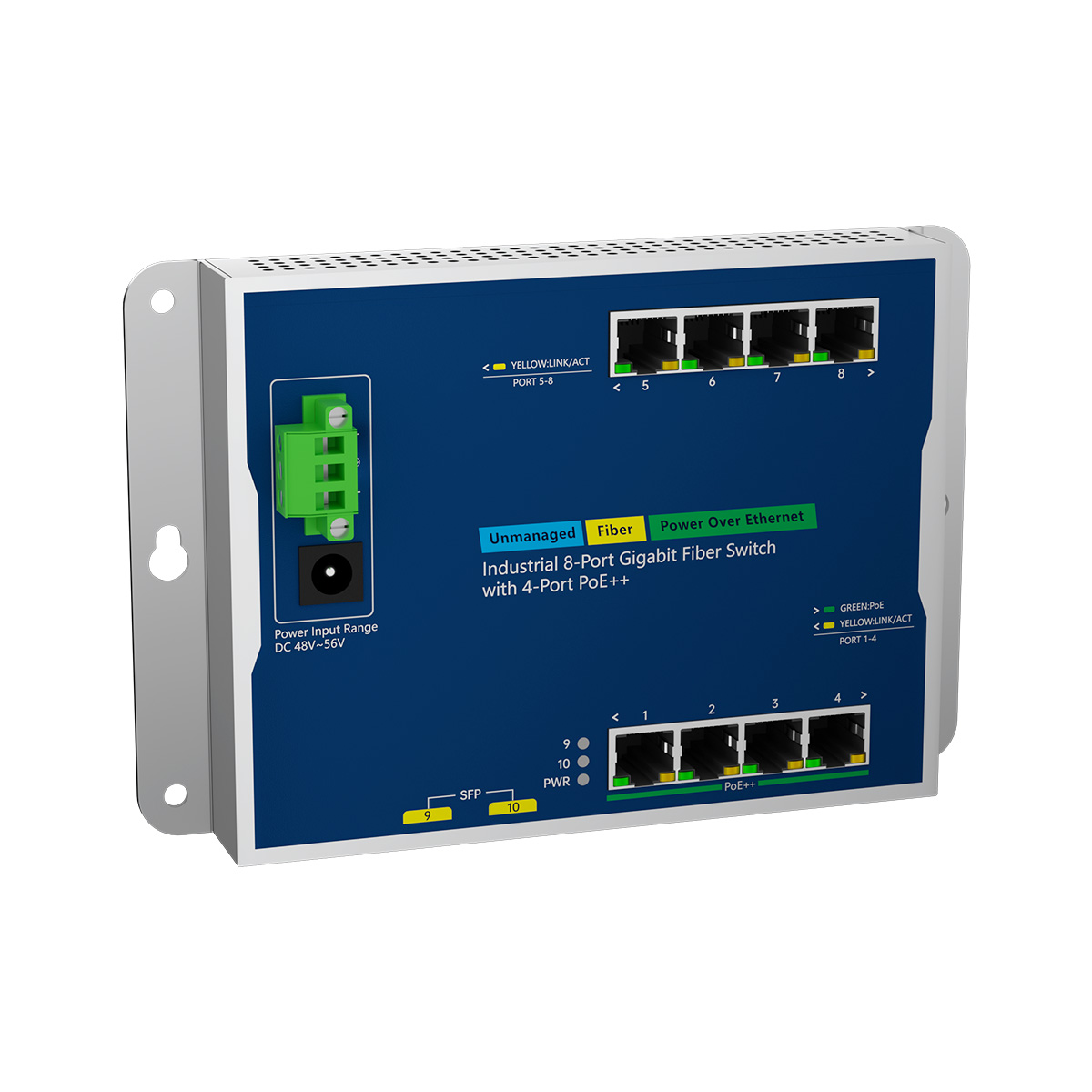

IES7211W-4P4GE2GF-DC, Flat-type 8 Port Gigabit Industrial Fiber Switch with 4 PoE++, 2 Gigabit SFP Uplink, Wall-mount or DIN-Rail Mount
Features

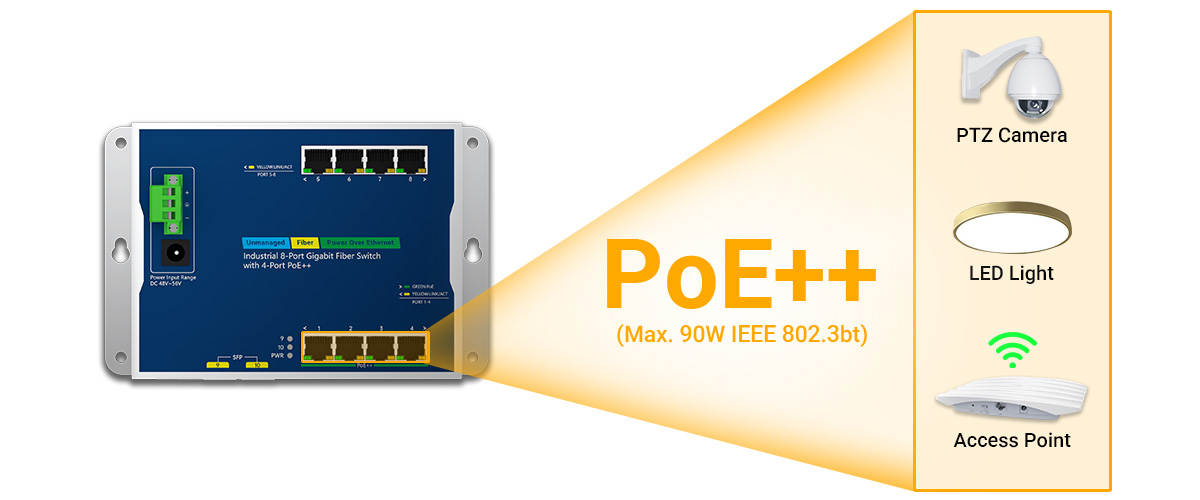

High-Power PoE++ for Demanding Devices
Deliver up to 90W per port with IEEE 802.3bt PoE++ support, perfect for high-consumption equipment such as PTZ cameras, Wi-Fi 6/6E access points, digital signage, and industrial sensors. Eliminate the need for extra power injectors and simplify cabling in surveillance and smart building projects.
Hybrid 4+4 Port Layout for Smart Power Management
Allocate 4 high-power PoE++ ports exclusively to energy-intensive devices while using the 4 non-PoE Gigabit ports for data-heavy connections like NVRs or controllers. This design prevents power contention and ensures both high bandwidth and stable power delivery.

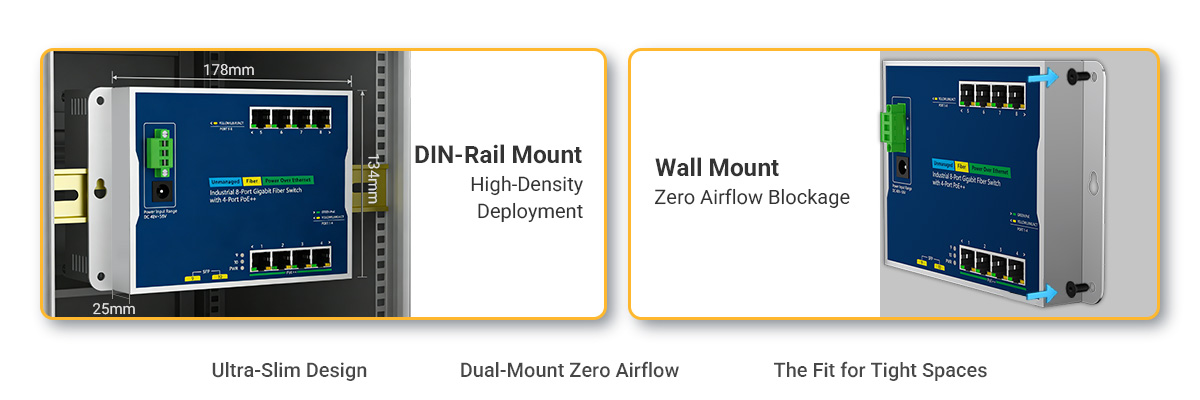

Ultra-Slim Design for High-Density Installations
At just 25mm deep, this flat switch fits into narrow enclosures, traffic cabinets, and DIN-rail panels where space is limited. Its low-profile build avoids airflow obstruction and supports dense deployments without cabinet modifications.
Reliable Fiber Uplinks for Noise-Immune Connectivity
Two 1.25G SFP slots support fiber modules for distances up to 80km, providing EMI-free links in electrically noisy environments like substations, railways, and factories. Fiber uplinks ensure stable data transmission where copper cables fail.
Built for Extreme Industrial Environments
Rated for -40°C to +75°C operation with IP40 metal housing, ±15kV ESD protection, and optional conformal coating. Deploy confidently in harsh settings such as Arctic sites, desert solar plants, or coastal installations with enhanced durability and reduced maintenance.
Connectivity Solutions

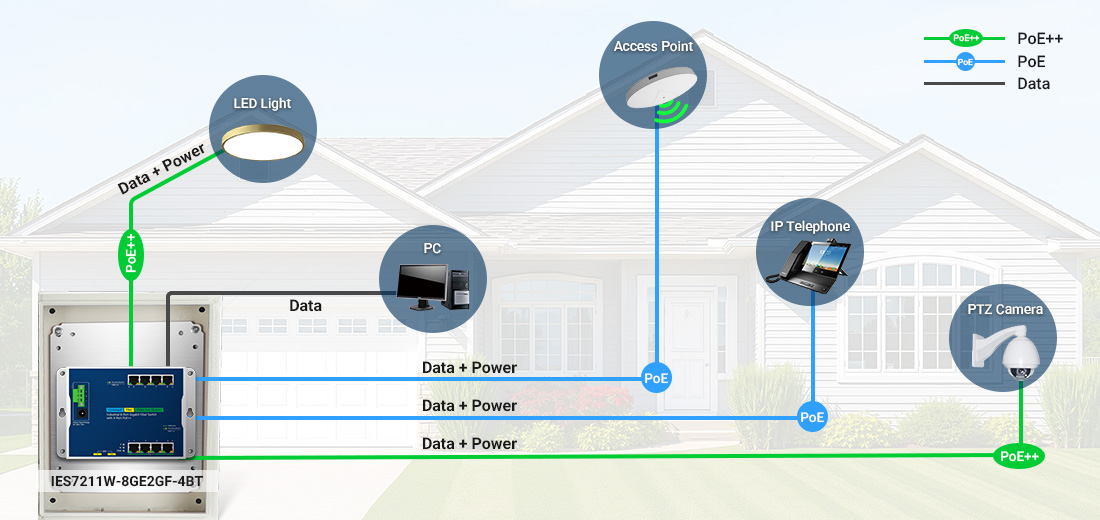

Flat-type Industrial PoE++ switch 8 Port with 2 Gigabit SFP Uplink of Application Solution

Specification
Технические характеристики :
IE7211W-8PGE2GF-DCМедные порты 10M/100M/1G RJ45 :
8Порты SFP 1,25G (оптоволоконные) :
2Порты PoE/PoE+ :
4Питание через Ethernet :
*Стандарт PoE :
Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetТип источника питания PoE :
End-span: 1/2(+), 3/6(-)Выходная мощность PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Технические характеристики производительности :
*Буферная память пакетов :
2.1 MbРежимы переадресации :
Store-and-forwardПропускная способность :
24 GbpsСкорость пересылки пакетов :
14.88Mpps (64 byte packet size)Размер базы данных MAC-адресов :
4K (48-bit MAC ad-dresses)Поддержка больших кадров :
9KСреднее время между отказами :
165,252 hours (MTBF) @ 25°CЗадержка медного кабеля 100 млн. :
8.532µs; 8.613µs; 8.712µsЗадержка медного кабеля 1G :
3.435µs; 3.541µs; 3.643µsЗадержка оптоволокна 1G :
2.993µs; 3.112µs; 3.183µsСетевые протоколы IEEE :
*Протоколы :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE)светодиоды :
YesНа порт :
Speed, Link, Activity; PoE in different modeЗа устройство :
PowerФизические характеристики :
*Размеры (ширина * глубина * высота) :
178 x 134 x 24 mm (5.91 x 5.12 x 1.89 in)Масса :
0.69 kg (1.52 lb)Защита корпуса :
IP30 high-strength caseТребования к питанию :
DC 48~56V, redundant power with reverse polarity protectionВентилятор :
FanlessЭкологические характеристики :
*Рабочая Температура :
-40° to 75°C (-40° to 176°F)Рабочая влажность :
95% maximum relative humidity (RH), non-condensingРабочая высота :
10,000 ft (3,000 m) maximumТемпература хранения :
-40° to 85°C (-40° to 185°F)Влажность при хранении (относительная) :
95% maximum relative humidity, non-condensingВысота хранения :
10,000 ft (3,000 m) maximumИсполнительный стандарт и защита :
*Молниезащита :
*МЭК61000-4-3 (РС) :
10V/m (80~1000MHz)FCC, часть 15/CISPR22 (EN55022) :
Class BМЭК 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (импульсное магнитное поле) :
1000A/mIEC61000-4-10 (затухающие колебания) :
30A/m, 1MHzIEC61000-4-12/18 (ударная волна) :
CM 2.5kV, DM 1kVМЭК61000-4-4(ЭФТ) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (синфазная передача) :
30V, 300V, 1sМЭК61000-4-2 (ЭСР) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Радиочастотная передача) :
10V(150kHz~80MHz)МЭК61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (перенапряжение): силовой кабель :
CM±4kV/ DM±2kV, Data cable: ±4kVМеханические свойства :
*МЭК60068-2-6 :
Anti VibrationМЭК60068-2-32 :
Free FallМЭК60068-2-27 :
Anti ShockЭлектромагнитное излучение и иммунитет :
*Сертификаты :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Безопасность :
*Сертификаты безопасности :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Гарантия и поддержка :
*Ограниченная гарантия на оборудование :
Limited Lifetime*Техническая поддержка по телефону и электронной почте* :
Limited Lifetime*Круглосуточная онлайн-чат технической поддержки :
Limited Lifetime*содержимое пакета :
*Все модели :
Industrial PoE Switch; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets, Installation guideВид бизнеса :
IndustrialБандридт :
1GДополнительные фильтры :
Unmanaged
Downloads
- Flat-type 8 Port Industrial Fiber Swtich with 4 PoE++ Datasheet (IES7211W-8GE2GF-4BT)
